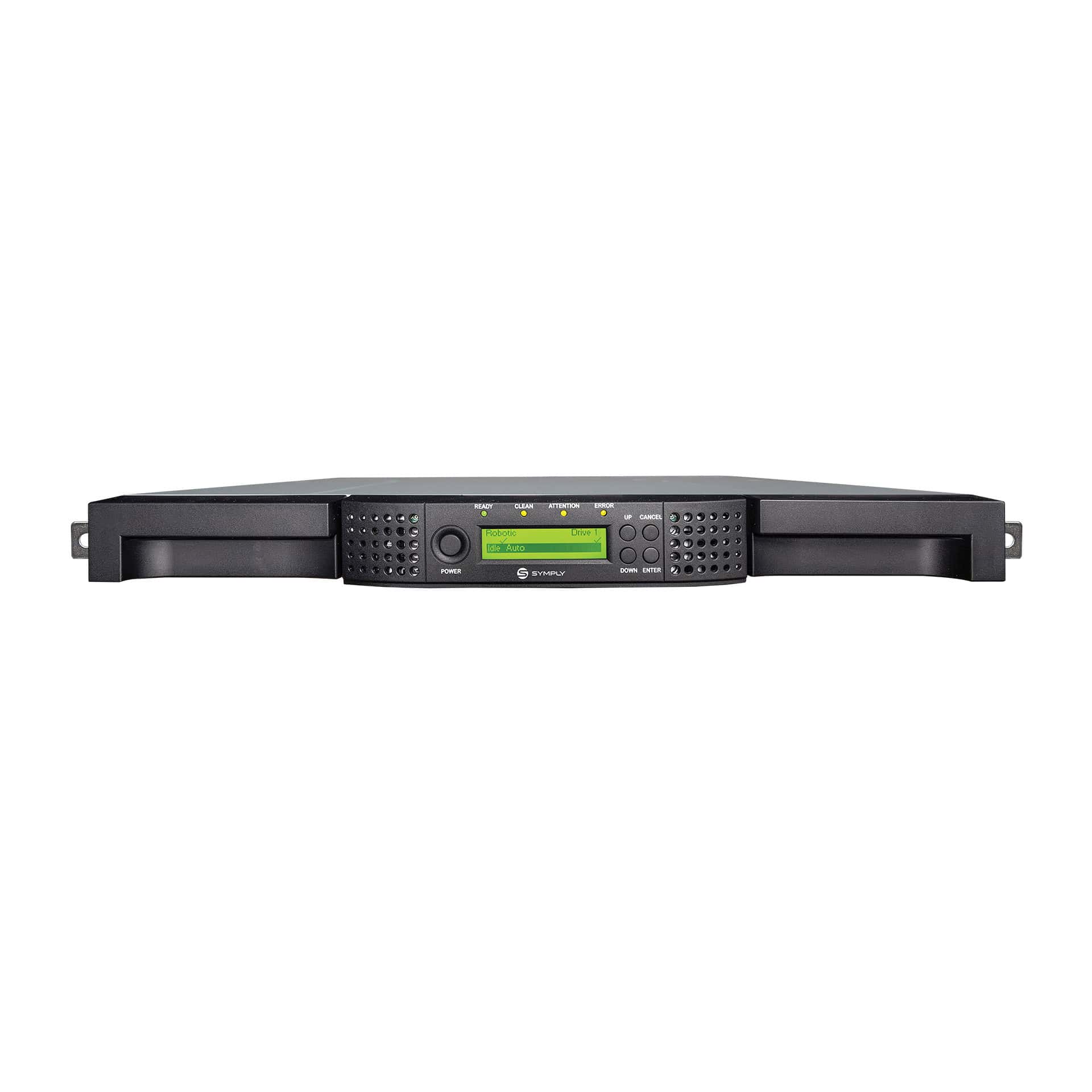

SymplyPRO XTL 8 – 1U LTO Tape Library
Compact 1U LTO tape library with 8 slots and one half-height LTO-7, LTO-8 or LTO-9 drive. Native SAS or Fibre Channel, with optional iSCSI or Thunderbolt 3, all 8 slots active with no license needed, and up to 144 TB native capacity for reliable, unattended backup and archive.
Finance available — contact us for leasing options.
Got a question? Reach out to us—our team is ready to help!
Product Details
1U 8-Slot LTO Library for Reliable Data Protection
SymplyPRO XTL 8 is a compact 1U entry-level library designed for reliable data protection, featuring support for current LTO generations, including LTO-7, LTO-8 and LTO-9 half-height tape drives. The XTL 8 is ideal for SMBs: quick to deploy and simple to run, providing an impressive balance between capacity and total cost of ownership. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via an external bridge or adapter—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.
Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 8 delivers a small library that is straightforward to operate.
Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Right-sized automation — small 1U library with 8 slots delivers true unattended backup/archiving without the footprint of larger libraries.
- Flexible connectivity — choose native 6/12 Gb SAS or 8 Gb Fibre Channel, or add 10 GbE iSCSI or Thunderbolt™ 3 via an external bridge or adapter to fit your infrastructure.
- No restrictive licenses — all 8 slots are active and included with the purchase.
- Total capacity — delivers up to 144 TB uncompressed using LTO-9 technology, or up to 96 TB with LTO-8.
- Choice of drives — supports 1 half-height LTO-7, LTO-8 or LTO-9 drive (note: optional iSCSI or Thunderbolt™ 3 connectivity uses an external Ethernet Bridge or Thunderbolt adapter, sold separately — the drive bay is unaffected).
- Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
- Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
- Operational control — password-protected, browser-based management for authorized administrators; clear audit trails via event logs.
- Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
- Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
- Rack configuration — ball-bearing slides included for smooth installation and service access.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
- Warranty — includes a 3-year warranty and industry-leading support.
| Rack Units | 1U |
| Number of Tape Slots | 8 |
| Number of Half-Height Tape Drives | 1 |
| Mail Slots (Import/Export) | 1 |
Contact us, and our team of experts will help you find the right solution for your workflow.
Interface
| Native Interface | SAS | Fibre Channel |
| LTO-8 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-9 | 12 Gb SFF-8644 | 8 Gb LC |
| Optional Interface (via external device, sold separately) — 10GbE Ethernet or Thunderbolt 3 |
System Power & Reliability
| Robotic MSBF | 1,000,000 |
| Power | Single PSU – AC 100-240V, 80 W |
Dimensions
| Height | 44 mm (1.73 in) |
| Width | 482 mm (18.97 in) |
| Depth | 806 mm (31.73 in) |
| Weight (No Tape Drives) | 11 Kg (24 lb) |
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Half Height | LTO-9 | 300 MB/Sec (750 MB/Sec) | 18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 | 300 MB/Sec (750 MB/Sec) | 12 TB (30 TB) |
| LTO-7 Half Height | LTO-7 | 300 MB/Sec (750 MB/Sec) | 6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type | MTBF (Hours) | MSBF (Mean Swaps Before Failure) | Load / Unload Cycles |
| Half-Height | 250,000 @ 100% Duty Cycle | 100,000 | 80,000 |
Environmental Specifications
| Environmental Factor | Recommended1 | Allowable2 | Non-Operating |
| Dry-Bulb Temperature | LTO-9: 15 to 25 °C (59 to 77 °F) LTO-7 and LTO-8: 16 to 25 °C (61 to 77 °F) |
LTO-9: 15 to 30 °C (59 to 86 °F) LTO-7 and LTO-8: 16 to 35 °C (61 to 95 °F) |
5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 50% (non-condensing) | 20 to 80% (non-condensing) | 20 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour |
| Maximum Humidity Change | 5% / hour | 5% / hour | 5% / hour |
| Temperature Limitation for Humidity Conditions | LTO-9: Max Dew Point 22 °C (72 °F) LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F) |
||
| Maximum Altitude | 3,048 m (10,000 ft) | 3,048 m (10,000 ft) | 12,192 m (40,000 ft) |
| Dust concentration | Less than 200 microgram / cubic meter |
Storage & Shipping
| Condition | Environmental Specification |
| Short-term storage conditions | See operating conditions |
| Long-term storage conditions | See operating conditions |
| Shipping conditions3 | 5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing; 26 °C (72 °F) dew point maximum |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
| XTL 8 | XTL 24 | XTL 40 | XTL 80 | |
| LTO Drive Supported | LTO-7, 8, 9 | LTO-8, 9 | LTO-7, 8, 9, 10 | LTO-7, 8, 9, 10 |
| Rack Units | 1U | 2U | 3U | 6U |
| Number of Tape Slots | 8 | 24 | 40 (640 total max) | 80 (560 total max) |
| Number of Half Height Drives | 1 | 2 | 3 (48 total max) | 6 (42 total max) |
| Number of Full Height Drives | n/a | n/a | 1 (16 total max) | 3 (21 total max) |
| Mail Slots (Import/Export) | 1 | 2 | 5 (80 total max) | 10 (70 total max) |
| Number of Magazines | 2 | 2 | 2 (32 total max) | 2 (32 total max) |
| Number of Expansion Modules | n/a | n/a | 15 | 6 |
| Redundant Power Supplies | n/a | n/a | Optional | Included |
| SAS Interface | ✔ | ✔ | ✔ | ✔ |
| FC Interface | ✔ | ✔ | ✔ | ✔ |
| 10GbE iSCSI Interface | Optional (external) | ✔ | ✔ | ✔ |
| Thunderbolt 3 Interface | Optional (external) | ✔ | ✔ | ✔ |
| Rack Mount Kit | ✔ | ✔ | ✔ | ✔ |
| Barcode Reader | ✔ | ✔ | ✔ | ✔ |
| Height | 44 mm (1.73 in) | 87 mm (3.42 in) | 133 mm (5.25 in) | 268 mm (10.55 in) |
| Width | 482 mm (18.97 in) | 482 mm (18.97 in) | 482 mm (18.98 in) | 482 mm (18.98 in) |
| Depth | 806 mm (31.73 in) | 806 mm (31.73 in) | 873 mm (34.37 in) | 895 mm (35.23 in) |
| Weight (no drives) | 11 Kg (24 lb) | 15 Kg (34 lb) | 25.1 Kg (55.34 lb) | 41 Kg (90.38 lb) |
| Power | 100 – 240 VAC/80 W | 100 – 240 VAC/160 W | 100 – 240 VAC/300 W | 100 – 240 VAC/300 W |
| Robotic MSBF | 1,000,000 | 1,000,000 | 2,000,000 | 3,000,000 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
Overview
1U 8-Slot LTO Library for Reliable Data Protection
SymplyPRO XTL 8 is a compact 1U entry-level library designed for reliable data protection, featuring support for current LTO generations, including LTO-7, LTO-8 and LTO-9 half-height tape drives. The XTL 8 is ideal for SMBs: quick to deploy and simple to run, providing an impressive balance between capacity and total cost of ownership. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via an external bridge or adapter—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.
Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 8 delivers a small library that is straightforward to operate.
Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
Features & Benefits
- Right-sized automation — small 1U library with 8 slots delivers true unattended backup/archiving without the footprint of larger libraries.
- Flexible connectivity — choose native 6/12 Gb SAS or 8 Gb Fibre Channel, or add 10 GbE iSCSI or Thunderbolt™ 3 via an external bridge or adapter to fit your infrastructure.
- No restrictive licenses — all 8 slots are active and included with the purchase.
- Total capacity — delivers up to 144 TB uncompressed using LTO-9 technology, or up to 96 TB with LTO-8.
- Choice of drives — supports 1 half-height LTO-7, LTO-8 or LTO-9 drive (note: optional iSCSI or Thunderbolt™ 3 connectivity uses an external Ethernet Bridge or Thunderbolt adapter, sold separately — the drive bay is unaffected).
- Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
- Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
- Operational control — password-protected, browser-based management for authorized administrators; clear audit trails via event logs.
- Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
- Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
- Rack configuration — ball-bearing slides included for smooth installation and service access.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
- Warranty — includes a 3-year warranty and industry-leading support.
Configuration
| Rack Units | 1U |
| Number of Tape Slots | 8 |
| Number of Half-Height Tape Drives | 1 |
| Mail Slots (Import/Export) | 1 |
Contact us, and our team of experts will help you find the right solution for your workflow.
Interface
| Native Interface | SAS | Fibre Channel |
| LTO-8 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-9 | 12 Gb SFF-8644 | 8 Gb LC |
| Optional Interface (via external device, sold separately) — 10GbE Ethernet or Thunderbolt 3 |
Technical Specifications
System Power & Reliability
| Robotic MSBF | 1,000,000 |
| Power | Single PSU – AC 100-240V, 80 W |
Dimensions
| Height | 44 mm (1.73 in) |
| Width | 482 mm (18.97 in) |
| Depth | 806 mm (31.73 in) |
| Weight (No Tape Drives) | 11 Kg (24 lb) |
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Half Height | LTO-9 | 300 MB/Sec (750 MB/Sec) | 18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 | 300 MB/Sec (750 MB/Sec) | 12 TB (30 TB) |
| LTO-7 Half Height | LTO-7 | 300 MB/Sec (750 MB/Sec) | 6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type | MTBF (Hours) | MSBF (Mean Swaps Before Failure) | Load / Unload Cycles |
| Half-Height | 250,000 @ 100% Duty Cycle | 100,000 | 80,000 |
Environmental Specifications
| Environmental Factor | Recommended1 | Allowable2 | Non-Operating |
| Dry-Bulb Temperature | LTO-9: 15 to 25 °C (59 to 77 °F) LTO-7 and LTO-8: 16 to 25 °C (61 to 77 °F) |
LTO-9: 15 to 30 °C (59 to 86 °F) LTO-7 and LTO-8: 16 to 35 °C (61 to 95 °F) |
5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 50% (non-condensing) | 20 to 80% (non-condensing) | 20 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour |
| Maximum Humidity Change | 5% / hour | 5% / hour | 5% / hour |
| Temperature Limitation for Humidity Conditions | LTO-9: Max Dew Point 22 °C (72 °F) LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F) |
||
| Maximum Altitude | 3,048 m (10,000 ft) | 3,048 m (10,000 ft) | 12,192 m (40,000 ft) |
| Dust concentration | Less than 200 microgram / cubic meter |
Storage & Shipping
| Condition | Environmental Specification |
| Short-term storage conditions | See operating conditions |
| Long-term storage conditions | See operating conditions |
| Shipping conditions3 | 5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing; 26 °C (72 °F) dew point maximum |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

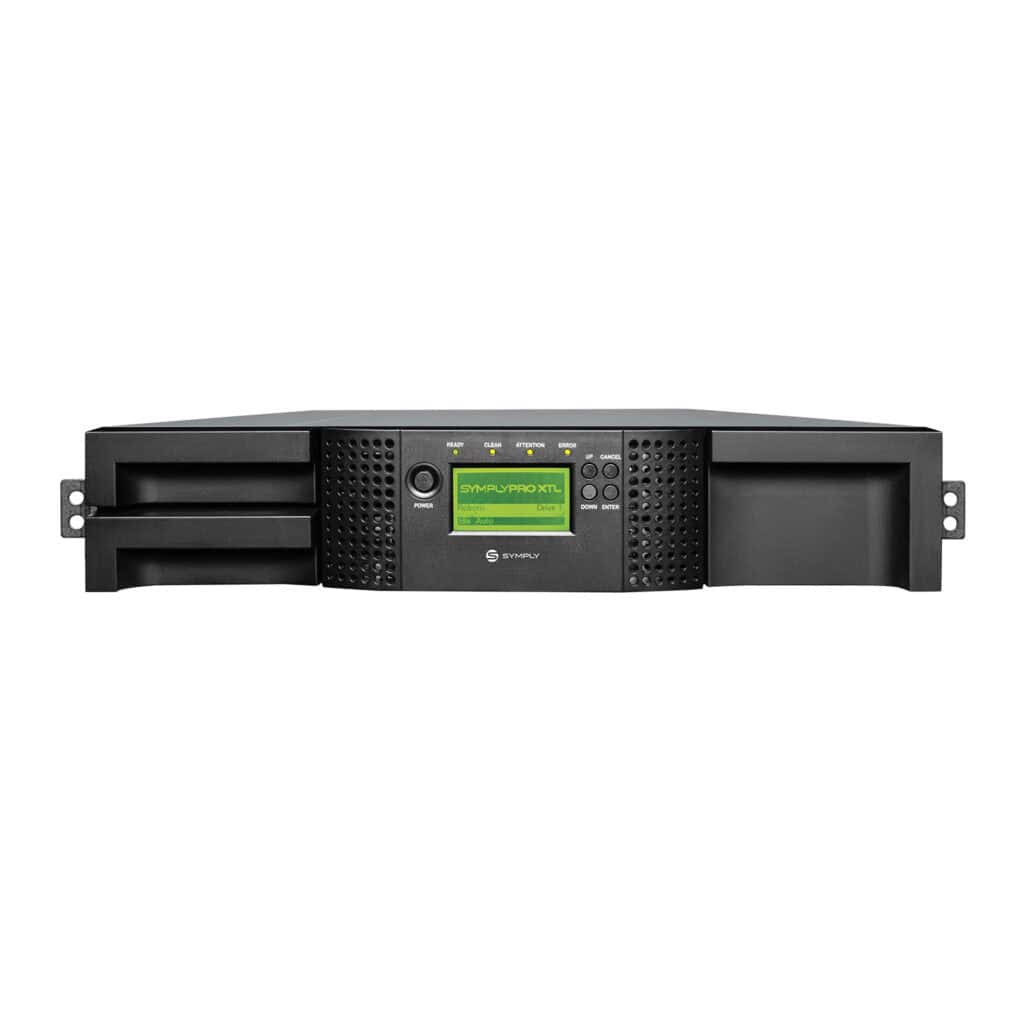

Library Comparison
| XTL 8 | XTL 24 | XTL 40 | XTL 80 | |
| LTO Drive Supported | LTO-7, 8, 9 | LTO-8, 9 | LTO-7, 8, 9, 10 | LTO-7, 8, 9, 10 |
| Rack Units | 1U | 2U | 3U | 6U |
| Number of Tape Slots | 8 | 24 | 40 (640 total max) | 80 (560 total max) |
| Number of Half Height Drives | 1 | 2 | 3 (48 total max) | 6 (42 total max) |
| Number of Full Height Drives | n/a | n/a | 1 (16 total max) | 3 (21 total max) |
| Mail Slots (Import/Export) | 1 | 2 | 5 (80 total max) | 10 (70 total max) |
| Number of Magazines | 2 | 2 | 2 (32 total max) | 2 (32 total max) |
| Number of Expansion Modules | n/a | n/a | 15 | 6 |
| Redundant Power Supplies | n/a | n/a | Optional | Included |
| SAS Interface | ✔ | ✔ | ✔ | ✔ |
| FC Interface | ✔ | ✔ | ✔ | ✔ |
| 10GbE iSCSI Interface | Optional (external) | ✔ | ✔ | ✔ |
| Thunderbolt 3 Interface | Optional (external) | ✔ | ✔ | ✔ |
| Rack Mount Kit | ✔ | ✔ | ✔ | ✔ |
| Barcode Reader | ✔ | ✔ | ✔ | ✔ |
| Height | 44 mm (1.73 in) | 87 mm (3.42 in) | 133 mm (5.25 in) | 268 mm (10.55 in) |
| Width | 482 mm (18.97 in) | 482 mm (18.97 in) | 482 mm (18.98 in) | 482 mm (18.98 in) |
| Depth | 806 mm (31.73 in) | 806 mm (31.73 in) | 873 mm (34.37 in) | 895 mm (35.23 in) |
| Weight (no drives) | 11 Kg (24 lb) | 15 Kg (34 lb) | 25.1 Kg (55.34 lb) | 41 Kg (90.38 lb) |
| Power | 100 – 240 VAC/80 W | 100 – 240 VAC/160 W | 100 – 240 VAC/300 W | 100 – 240 VAC/300 W |
| Robotic MSBF | 1,000,000 | 1,000,000 | 2,000,000 | 3,000,000 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
