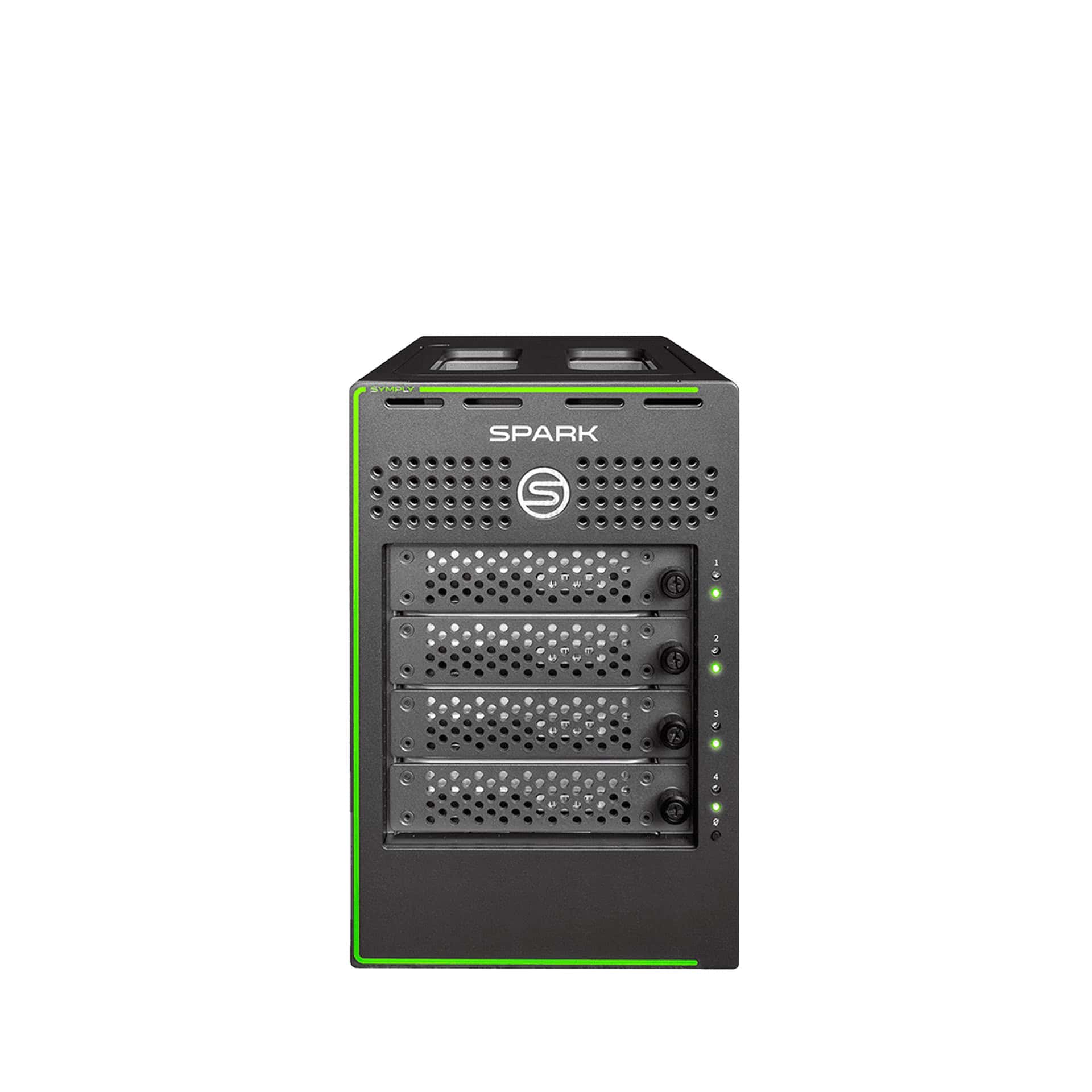

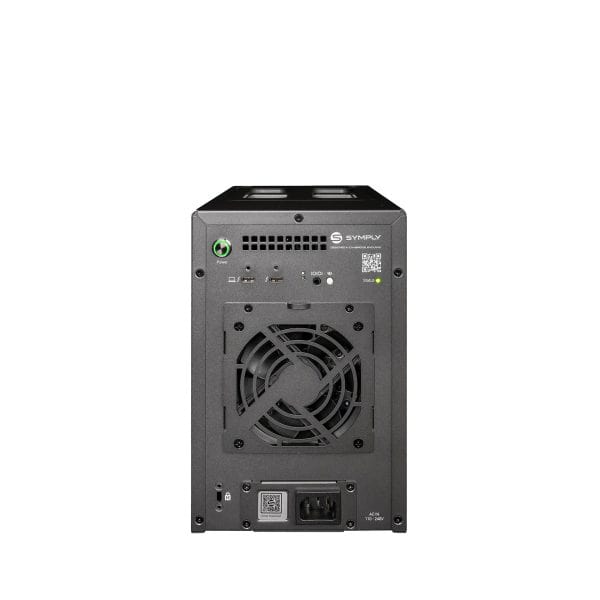

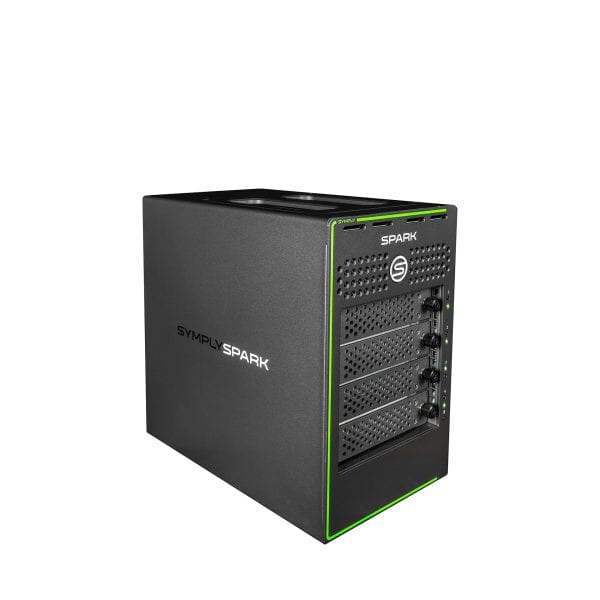

SPARK 4-Bay Thunderbolt RAID
SPARK 4-Bay Thunderbolt RAID for video editing. Compact and portable, with up to 120 TB of enterprise-class hard drives and up to 700 MB/s, dual Thunderbolt 3, hardware RAID protection and user-serviceable drives, fan and power supply.
Got a question? Reach out to us—our team is ready to help!
Product Details
SPARK 4-Bay Thunderbolt RAID: Compact Storage for Video Editing
The SPARK 4-Bay is compact, portable direct-attached Thunderbolt RAID storage (DAS) for editors and content creators who need fast, reliable capacity on the desk or on set. Four enterprise-class hard drives deliver up to 120 TB of raw capacity and up to 700 MB/s, with plug-and-play setup on macOS and Windows.
Your content stays protected. SPARK supports hardware RAID 0, 1, 5, 6, 10 and JBOD and ships configured in RAID 5, so you keep working even in the unlikely event of a drive failure.
Built to travel: a robust all-metal enclosure with an integrated carry handle, whisper-quiet operation under 40 dB, and Studio Mode to turn off the LEDs in light-sensitive environments. For shipping and on-set work, add the optional NANUK wheeled transport case with a custom foam insert.
Two Thunderbolt™ 3 ports support daisy-chaining and fast device charging, with the SymplyLOCK™ cable lock to prevent accidental disconnects. Hot-swap drive caddies plus a field-replaceable fan and power supply keep downtime to a minimum, and the optional SymplySAM kit has everything you need for maintenance in the field.
Every SPARK is backed by a 5-year worldwide warranty and free lifetime online support from trained media professionals. Need more capacity and speed? See the SPARK 8-Bay, or compare both on the SPARK page.
- SPARK 4-Bay with drives installed
- 1x 2m (6.5 ft) active Thunderbolt 3 cable
- 1x SymplyLOCK™ Thunderbolt cable lock
- 1x power cable
- Dual Thunderbolt™ 3 — two ports for high throughput, daisy-chaining and fast device charging.
- 4-bay Thunderbolt RAID — up to 120 TB using enterprise-class hard drives.
- Performance for video editing — up to 700 MB/s.
- Hardware RAID protection — RAID 0, 1, 5, 6, 10 and JBOD. Ships in RAID 5 to keep you working even in the unlikely event of a drive failure.
- User serviceable — hot-swap drive caddies with locking pin and thumbscrews, plus a field-replaceable fan and power supply.
- Rugged and portable — robust all-metal build, integrated carry handle and AC 110–240V power supply.
- Whisper quiet — under 40 dB, ideal for desktop and on-set use.
- Studio Mode — LED blackout for light-sensitive studio and on-set environments.

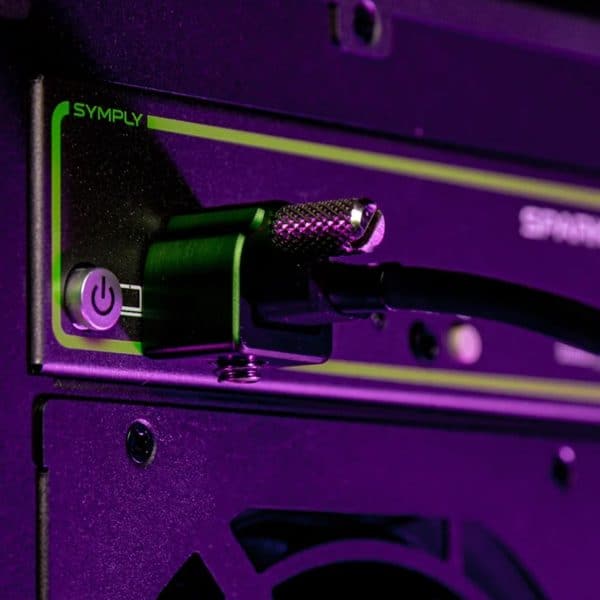

- Secure connections — SymplyLOCK™ machined aluminum Thunderbolt cable lock and Kensington® lock slot.
- Optional accessories — NANUK wheeled transport case with custom foam insert and SymplySAM self-assisted maintenance kit.
- macOS and Windows — plug-and-play support on both platforms.
- Warranty and support — 5-year worldwide warranty and free lifetime online support.
SPARK 4-Bay Specifications
| SPARK 4-Bay | |
| Drive Bays | 4 |
| Host Interface | 2 x Thunderbolt 3 with device charging |
| RAID Levels | 0, 1, 5, 6, 10, JBOD (ships in RAID 5) |
| Performance | Up to 700 MB/s |
| Dimensions (D x W x H) | 24.0 x 15.0 x 23.5 cm (9.4 x 5.9 x 9.3 in) |
| Weight | 7.6 kg (16.8 lb) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 5% to 85% (non-condensing) |
| Acoustics | Under 40 dB |
| OS Support | macOS and Windows |
| Warranty | 5 years, worldwide |
Capacity
| Raw Capacity | Usable Capacity (RAID 5)* | Performance |
| 40 TB | ~30 TB | Up to 700 MB/s |
| 56 TB | ~42 TB | Up to 700 MB/s |
| 64 TB | ~48 TB | Up to 700 MB/s |
| 96 TB | ~72 TB | Up to 700 MB/s |
| 120 TB | ~90 TB | Up to 700 MB/s |
* RAID 5 (default) reserves one drive’s worth of capacity for parity. Usable figures are approximate and shown before formatting. RAID 0 provides full raw capacity with no redundancy.
| Feature | SPARK 4-Bay | SDP G-RAID 4 | Areca ARC-8050T3U-4 |
Promise R32 4 Bay |
OWC Thunderbay 4 |
| Robust all-metal build | |||||
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |||||
| User Serviceable HDD, PSU & FAN | |||||
| Library Quiet | Not Published | Not Published | Not Published | ||
| Carry Handle | |||||
| Lights Out Mode | |||||
| HDD Locking Pin | |||||
| MA HDD Support | |||||
| Kensington Lock | |||||
| Wheeled hard case option | |||||
| Dimensions | 150 x 240 x 235 | 174 x 248 x 268 | 165 x 123 x 123 | 187 x 245 x 192 | 135 x 245 x 177 |
| Weight | 7.16kg | 7.16kg (with HDDs) | 3.6kg (without HDDs) | 6.8kg (without HDDs) | 3.9kg (without HDDs) |
Description
SPARK 4-Bay Thunderbolt RAID: Compact Storage for Video Editing
The SPARK 4-Bay is compact, portable direct-attached Thunderbolt RAID storage (DAS) for editors and content creators who need fast, reliable capacity on the desk or on set. Four enterprise-class hard drives deliver up to 120 TB of raw capacity and up to 700 MB/s, with plug-and-play setup on macOS and Windows.
Your content stays protected. SPARK supports hardware RAID 0, 1, 5, 6, 10 and JBOD and ships configured in RAID 5, so you keep working even in the unlikely event of a drive failure.
Built to travel: a robust all-metal enclosure with an integrated carry handle, whisper-quiet operation under 40 dB, and Studio Mode to turn off the LEDs in light-sensitive environments. For shipping and on-set work, add the optional NANUK wheeled transport case with a custom foam insert.
Two Thunderbolt™ 3 ports support daisy-chaining and fast device charging, with the SymplyLOCK™ cable lock to prevent accidental disconnects. Hot-swap drive caddies plus a field-replaceable fan and power supply keep downtime to a minimum, and the optional SymplySAM kit has everything you need for maintenance in the field.
Every SPARK is backed by a 5-year worldwide warranty and free lifetime online support from trained media professionals. Need more capacity and speed? See the SPARK 8-Bay, or compare both on the SPARK page.
What's in the box?
- SPARK 4-Bay with drives installed
- 1x 2m (6.5 ft) active Thunderbolt 3 cable
- 1x SymplyLOCK™ Thunderbolt cable lock
- 1x power cable
Features & Benefits
- Dual Thunderbolt™ 3 — two ports for high throughput, daisy-chaining and fast device charging.
- 4-bay Thunderbolt RAID — up to 120 TB using enterprise-class hard drives.
- Performance for video editing — up to 700 MB/s.
- Hardware RAID protection — RAID 0, 1, 5, 6, 10 and JBOD. Ships in RAID 5 to keep you working even in the unlikely event of a drive failure.
- User serviceable — hot-swap drive caddies with locking pin and thumbscrews, plus a field-replaceable fan and power supply.
- Rugged and portable — robust all-metal build, integrated carry handle and AC 110–240V power supply.
- Whisper quiet — under 40 dB, ideal for desktop and on-set use.
- Studio Mode — LED blackout for light-sensitive studio and on-set environments.
- Secure connections — SymplyLOCK™ machined aluminum Thunderbolt cable lock and Kensington® lock slot.
- Optional accessories — NANUK wheeled transport case with custom foam insert and SymplySAM self-assisted maintenance kit.
- macOS and Windows — plug-and-play support on both platforms.
- Warranty and support — 5-year worldwide warranty and free lifetime online support.
Specifications
SPARK 4-Bay Specifications
| SPARK 4-Bay | |
| Drive Bays | 4 |
| Host Interface | 2 x Thunderbolt 3 with device charging |
| RAID Levels | 0, 1, 5, 6, 10, JBOD (ships in RAID 5) |
| Performance | Up to 700 MB/s |
| Dimensions (D x W x H) | 24.0 x 15.0 x 23.5 cm (9.4 x 5.9 x 9.3 in) |
| Weight | 7.6 kg (16.8 lb) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 5% to 85% (non-condensing) |
| Acoustics | Under 40 dB |
| OS Support | macOS and Windows |
| Warranty | 5 years, worldwide |
Capacity
| Raw Capacity | Usable Capacity (RAID 5)* | Performance |
| 40 TB | ~30 TB | Up to 700 MB/s |
| 56 TB | ~42 TB | Up to 700 MB/s |
| 64 TB | ~48 TB | Up to 700 MB/s |
| 96 TB | ~72 TB | Up to 700 MB/s |
| 120 TB | ~90 TB | Up to 700 MB/s |
* RAID 5 (default) reserves one drive’s worth of capacity for parity. Usable figures are approximate and shown before formatting. RAID 0 provides full raw capacity with no redundancy.
Comparison
| Feature | SPARK 4-Bay | SDP G-RAID 4 | Areca ARC-8050T3U-4 |
Promise R32 4 Bay |
OWC Thunderbay 4 |
| Robust all-metal build | |||||
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |||||
| User Serviceable HDD, PSU & FAN | |||||
| Library Quiet | Not Published | Not Published | Not Published | ||
| Carry Handle | |||||
| Lights Out Mode | |||||
| HDD Locking Pin | |||||
| MA HDD Support | |||||
| Kensington Lock | |||||
| Wheeled hard case option | |||||
| Dimensions | 150 x 240 x 235 | 174 x 248 x 268 | 165 x 123 x 123 | 187 x 245 x 192 | 135 x 245 x 177 |
| Weight | 7.16kg | 7.16kg (with HDDs) | 3.6kg (without HDDs) | 6.8kg (without HDDs) | 3.9kg (without HDDs) |
