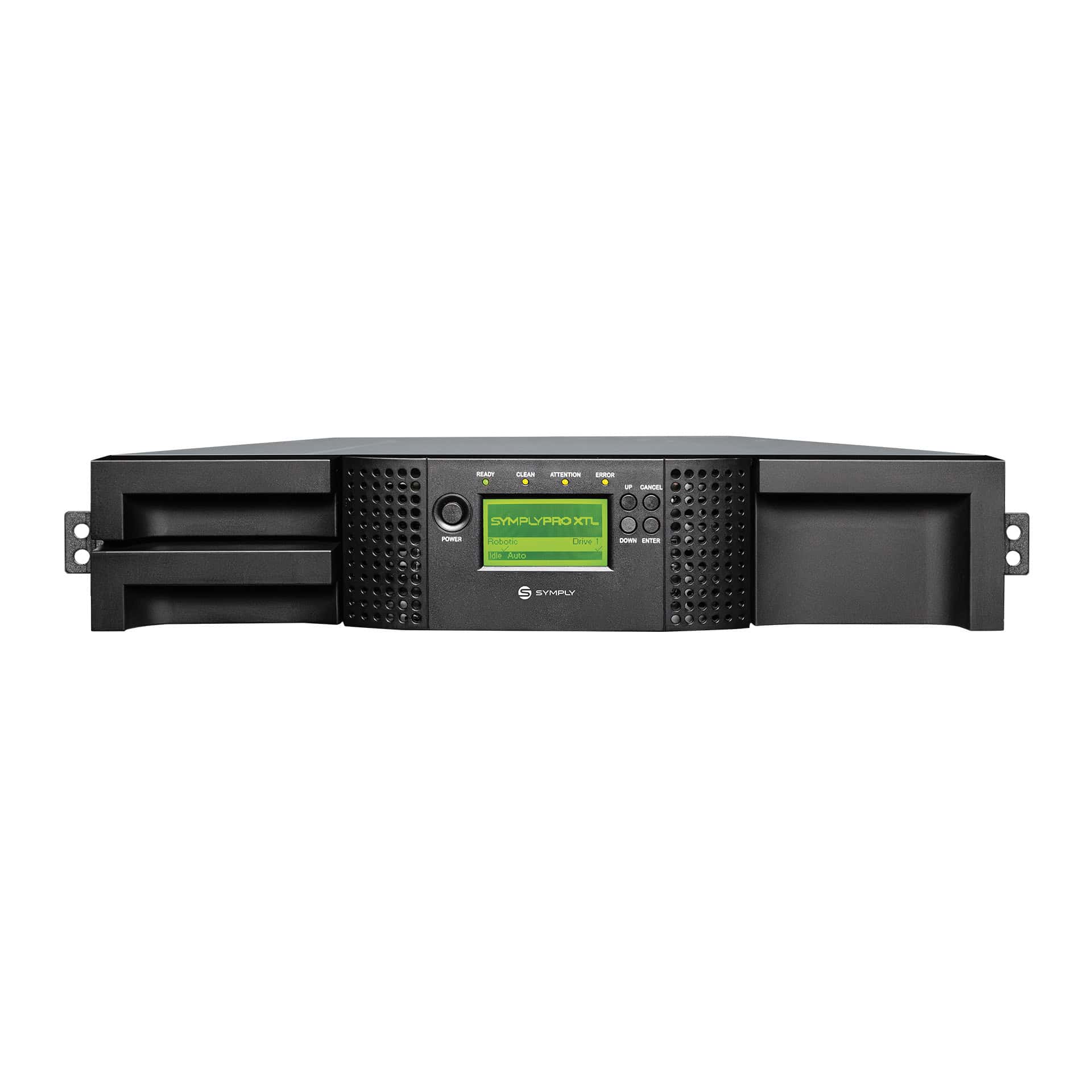

SymplyPRO XTL 24 – 2U LTO Tape Library
Compact 2U LTO tape library with 24 slots and one or two half-height LTO-8 or LTO-9 drives. Native SAS or Fibre Channel, with optional iSCSI or Thunderbolt 3, all 24 slots active with no license needed, and up to 432 TB native capacity for reliable, unattended backup and archive.
Finance available — contact us for leasing options.
Got a question? Reach out to us—our team is ready to help!
Product Details
2U 24-Slot LTO Library in a Compact Design
SymplyPRO XTL 24 brings reliable LTO automation to SMBs, departments, and remote sites in a compact 2U / 24-slot form factor that’s quick to deploy, offers the most comprehensive connectivity in the industry, and is simple to run—even for unattended, overnight jobs. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via host interface module—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.
Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 24 delivers a library that is straightforward to operate.
Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Right-sized automation — 2U library with 24 slots delivers true unattended backup/archiving without the footprint of larger libraries.
- Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
- No restrictive licenses — all 24 slots are active with one or two drives, and included with the purchase.
- Total capacity — delivers up to 432 TB uncompressed using LTO-9 technology, or up to 288 TB with LTO-8.
- Choice of drives — supports 1 or 2 half-height LTO-8 or LTO-9 drives (note: optional iSCSI or Thunderbolt™ 3 module limits to one drive).
- Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
- Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
- Operational control — password-protected, browser-based management for authorized administrators; clear audit trails via event logs.
- Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
- Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
- Logical library support — enables two logical libraries when two tape drives are installed.
- Rack configuration — ball-bearing slides included for smooth installation and service access.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
- Warranty — includes a 3-year warranty and industry-leading support.
| Rack Units | 2U |
| Number of Tape Slots | 24 |
| Number of Half-Height Tape Drives | 1 or 2 |
| Mail Slots (Import/Export) | 1 |
| Number of Magazines | 2 |
| Max Partitions | 2 |
Contact us, and our team of experts will help you find the right solution for your workflow.
Interface
| Native Interface | SAS | Fibre Channel |
| LTO-8 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-9 | 12 Gb SFF-8644 | 8 Gb LC |
| Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3 |
System Power & Reliability
| Robotic MSBF | 1,000,000 |
| Power | Single PSU – AC 100-240V, 3,5 / 1,5A, 50-60Hz |
Dimensions
| Height | 87 mm (3.42 in) |
| Width | 482 mm (18.97 in) |
| Depth | 806 mm (31.73 in) |
| Weight (No Tape Drives) | 15 Kg (34 lb) |
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Half Height | LTO-9 | 300 MB/Sec (750 MB/Sec) | 18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 | 300 MB/Sec (750 MB/Sec) | 12 TB (30 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type | MTBF (Hours) | MSBF (Mean Swaps Before Failure) | Load / Unload Cycles |
| Half-Height | 250,000 @ 100% Duty Cycle | 100,000 | 80,000 |
Environmental Specifications
| Environmental Factor | Recommended1 | Allowable2 | Non-Operating |
| Dry-Bulb Temperature | LTO-9: 15 to 25 °C (59 to 77 °F) LTO-8: 16 to 25 °C (61 to 77 °F) |
LTO-9: 15 to 30 °C (59 to 86 °F) LTO-8: 16 to 35 °C (61 to 95 °F) |
5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 50% (non-condensing) | 20 to 80% (non-condensing) | 20 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour |
| Maximum Humidity Change | 5% / hour | 5% / hour | 5% / hour |
| Temperature Limitation for Humidity Conditions | LTO-9: Max Dew Point 22 °C (72 °F) LTO-8: Wet Bulb Temperature <= 26 °C (79 °F) |
||
| Maximum Altitude | 3,048 m (10,000 ft) | 3,048 m (10,000 ft) | 12,192 m (40,000 ft) |
| Dust concentration | Less than 200 microgram / cubic meter |
Storage & Shipping
| Condition | Environmental Specification |
| Short-term storage conditions | See operating conditions |
| Long-term storage conditions | See operating conditions |
| Shipping conditions3 | 5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing; 26 °C (72 °F) dew point maximum |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
| XTL 8 | XTL 24 | XTL 40 | XTL 80 | |
| LTO Drive Supported | LTO-7, 8, 9 | LTO-8, 9 | LTO-7, 8, 9, 10 | LTO-7, 8, 9, 10 |
| Rack Units | 1U | 2U | 3U | 6U |
| Number of Tape Slots | 8 | 24 | 40 (640 total max) | 80 (560 total max) |
| Number of Half Height Drives | 1 | 2 | 3 (48 total max) | 6 (42 total max) |
| Number of Full Height Drives | n/a | n/a | 1 (16 total max) | 3 (21 total max) |
| Mail Slots (Import/Export) | 1 | 2 | 5 (80 total max) | 10 (70 total max) |
| Number of Magazines | 2 | 2 | 2 (32 total max) | 2 (32 total max) |
| Number of Expansion Modules | n/a | n/a | 15 | 6 |
| Redundant Power Supplies | n/a | n/a | Optional | Included |
| SAS Interface | ✔ | ✔ | ✔ | ✔ |
| FC Interface | ✔ | ✔ | ✔ | ✔ |
| 10GbE iSCSI Interface | Optional (external) | ✔ | ✔ | ✔ |
| Thunderbolt 3 Interface | Optional (external) | ✔ | ✔ | ✔ |
| Rack Mount Kit | ✔ | ✔ | ✔ | ✔ |
| Barcode Reader | ✔ | ✔ | ✔ | ✔ |
| Height | 44 mm (1.73 in) | 87 mm (3.42 in) | 133 mm (5.25 in) | 268 mm (10.55 in) |
| Width | 482 mm (18.97 in) | 482 mm (18.97 in) | 482 mm (18.98 in) | 482 mm (18.98 in) |
| Depth | 806 mm (31.73 in) | 806 mm (31.73 in) | 873 mm (34.37 in) | 895 mm (35.23 in) |
| Weight (no drives) | 11 Kg (24 lb) | 15 Kg (34 lb) | 25.1 Kg (55.34 lb) | 41 Kg (90.38 lb) |
| Power | 100 – 240 VAC/80 W | 100 – 240 VAC/160 W | 100 – 240 VAC/300 W | 100 – 240 VAC/300 W |
| Robotic MSBF | 1,000,000 | 1,000,000 | 2,000,000 | 3,000,000 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
Overview
2U 24-Slot LTO Library in a Compact Design
SymplyPRO XTL 24 brings reliable LTO automation to SMBs, departments, and remote sites in a compact 2U / 24-slot form factor that’s quick to deploy, offers the most comprehensive connectivity in the industry, and is simple to run—even for unattended, overnight jobs. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via host interface module—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.
Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 24 delivers a library that is straightforward to operate.
Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
Features & Benefits
- Right-sized automation — 2U library with 24 slots delivers true unattended backup/archiving without the footprint of larger libraries.
- Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
- No restrictive licenses — all 24 slots are active with one or two drives, and included with the purchase.
- Total capacity — delivers up to 432 TB uncompressed using LTO-9 technology, or up to 288 TB with LTO-8.
- Choice of drives — supports 1 or 2 half-height LTO-8 or LTO-9 drives (note: optional iSCSI or Thunderbolt™ 3 module limits to one drive).
- Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
- Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
- Operational control — password-protected, browser-based management for authorized administrators; clear audit trails via event logs.
- Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
- Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
- Logical library support — enables two logical libraries when two tape drives are installed.
- Rack configuration — ball-bearing slides included for smooth installation and service access.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
- Warranty — includes a 3-year warranty and industry-leading support.
Configuration
| Rack Units | 2U |
| Number of Tape Slots | 24 |
| Number of Half-Height Tape Drives | 1 or 2 |
| Mail Slots (Import/Export) | 1 |
| Number of Magazines | 2 |
| Max Partitions | 2 |
Contact us, and our team of experts will help you find the right solution for your workflow.
Interface
| Native Interface | SAS | Fibre Channel |
| LTO-8 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-9 | 12 Gb SFF-8644 | 8 Gb LC |
| Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3 |
Technical Specifications
System Power & Reliability
| Robotic MSBF | 1,000,000 |
| Power | Single PSU – AC 100-240V, 3,5 / 1,5A, 50-60Hz |
Dimensions
| Height | 87 mm (3.42 in) |
| Width | 482 mm (18.97 in) |
| Depth | 806 mm (31.73 in) |
| Weight (No Tape Drives) | 15 Kg (34 lb) |
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Half Height | LTO-9 | 300 MB/Sec (750 MB/Sec) | 18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 | 300 MB/Sec (750 MB/Sec) | 12 TB (30 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type | MTBF (Hours) | MSBF (Mean Swaps Before Failure) | Load / Unload Cycles |
| Half-Height | 250,000 @ 100% Duty Cycle | 100,000 | 80,000 |
Environmental Specifications
| Environmental Factor | Recommended1 | Allowable2 | Non-Operating |
| Dry-Bulb Temperature | LTO-9: 15 to 25 °C (59 to 77 °F) LTO-8: 16 to 25 °C (61 to 77 °F) |
LTO-9: 15 to 30 °C (59 to 86 °F) LTO-8: 16 to 35 °C (61 to 95 °F) |
5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 50% (non-condensing) | 20 to 80% (non-condensing) | 20 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour |
| Maximum Humidity Change | 5% / hour | 5% / hour | 5% / hour |
| Temperature Limitation for Humidity Conditions | LTO-9: Max Dew Point 22 °C (72 °F) LTO-8: Wet Bulb Temperature <= 26 °C (79 °F) |
||
| Maximum Altitude | 3,048 m (10,000 ft) | 3,048 m (10,000 ft) | 12,192 m (40,000 ft) |
| Dust concentration | Less than 200 microgram / cubic meter |
Storage & Shipping
| Condition | Environmental Specification |
| Short-term storage conditions | See operating conditions |
| Long-term storage conditions | See operating conditions |
| Shipping conditions3 | 5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing; 26 °C (72 °F) dew point maximum |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
Library Comparison
| XTL 8 | XTL 24 | XTL 40 | XTL 80 | |
| LTO Drive Supported | LTO-7, 8, 9 | LTO-8, 9 | LTO-7, 8, 9, 10 | LTO-7, 8, 9, 10 |
| Rack Units | 1U | 2U | 3U | 6U |
| Number of Tape Slots | 8 | 24 | 40 (640 total max) | 80 (560 total max) |
| Number of Half Height Drives | 1 | 2 | 3 (48 total max) | 6 (42 total max) |
| Number of Full Height Drives | n/a | n/a | 1 (16 total max) | 3 (21 total max) |
| Mail Slots (Import/Export) | 1 | 2 | 5 (80 total max) | 10 (70 total max) |
| Number of Magazines | 2 | 2 | 2 (32 total max) | 2 (32 total max) |
| Number of Expansion Modules | n/a | n/a | 15 | 6 |
| Redundant Power Supplies | n/a | n/a | Optional | Included |
| SAS Interface | ✔ | ✔ | ✔ | ✔ |
| FC Interface | ✔ | ✔ | ✔ | ✔ |
| 10GbE iSCSI Interface | Optional (external) | ✔ | ✔ | ✔ |
| Thunderbolt 3 Interface | Optional (external) | ✔ | ✔ | ✔ |
| Rack Mount Kit | ✔ | ✔ | ✔ | ✔ |
| Barcode Reader | ✔ | ✔ | ✔ | ✔ |
| Height | 44 mm (1.73 in) | 87 mm (3.42 in) | 133 mm (5.25 in) | 268 mm (10.55 in) |
| Width | 482 mm (18.97 in) | 482 mm (18.97 in) | 482 mm (18.98 in) | 482 mm (18.98 in) |
| Depth | 806 mm (31.73 in) | 806 mm (31.73 in) | 873 mm (34.37 in) | 895 mm (35.23 in) |
| Weight (no drives) | 11 Kg (24 lb) | 15 Kg (34 lb) | 25.1 Kg (55.34 lb) | 41 Kg (90.38 lb) |
| Power | 100 – 240 VAC/80 W | 100 – 240 VAC/160 W | 100 – 240 VAC/300 W | 100 – 240 VAC/300 W |
| Robotic MSBF | 1,000,000 | 1,000,000 | 2,000,000 | 3,000,000 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
