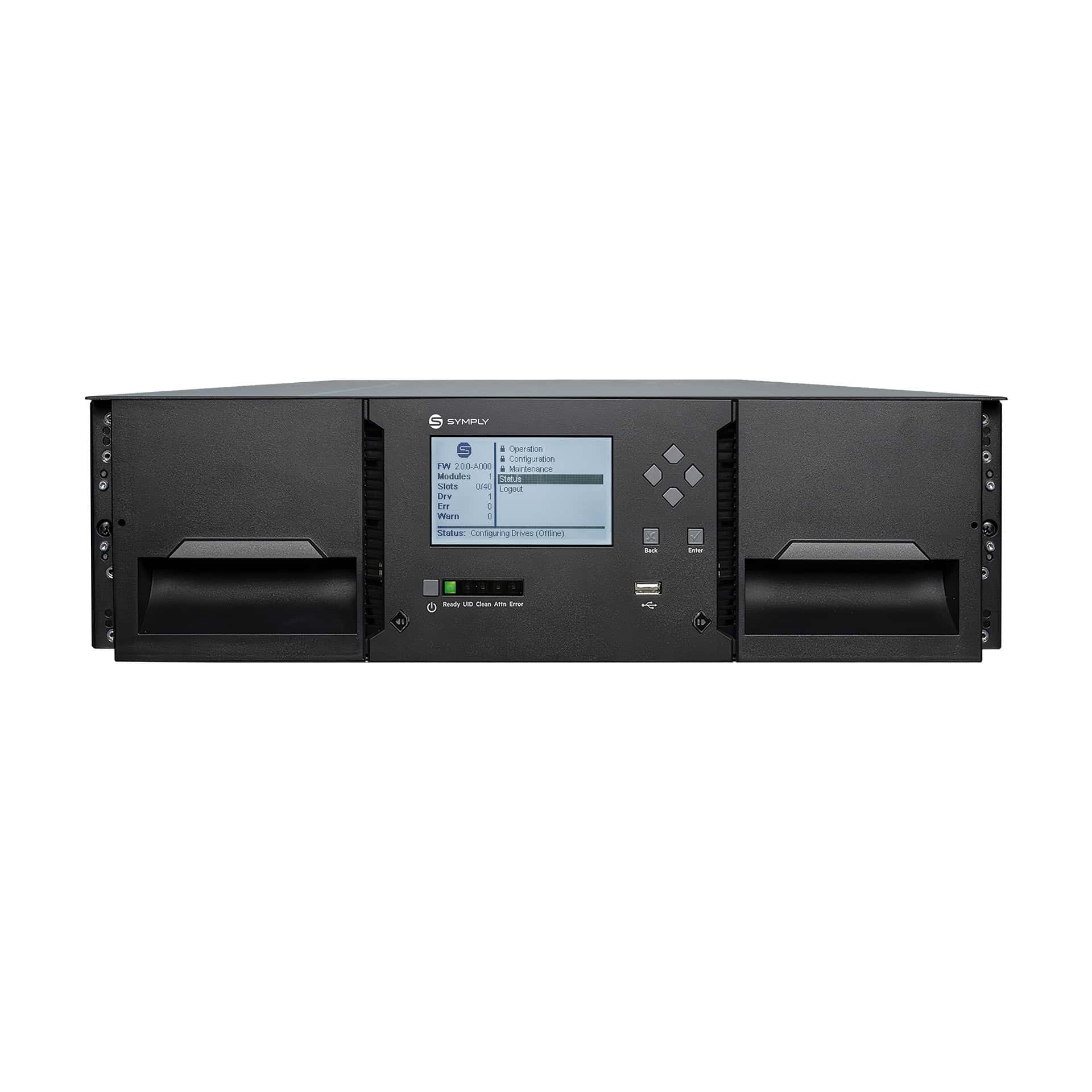

SymplyPRO XTL 40 – 3U LTO Tape Library
Modular 3U LTO tape library with 40 slots per module, scaling to 640 slots in a 48U rack. Up to three half-height or one full-height LTO-7 to LTO-10 drive per module, native SAS or Fibre Channel, optional iSCSI or Thunderbolt 3, and no need for slot or partitioning licenses.
Finance available — contact us for leasing options.
Got a question? Reach out to us—our team is ready to help!
Product Details
3U Modular LTO Library — 40 Slots, Scalable Architecture
Built on proven architecture, ready for your stack. The SymplyPRO XTL 40 brings proven LTO automation into a compact, 3U, 40-slot library designed for easy integration and everyday reliability. Choose the host connectivity that fits your infrastructure, 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3, and slot it straight into existing backup and archive workflows. A clear front-panel interface speeds local setup, while secure, browser-based remote management lets you monitor status, update firmware, move media, run diagnostics and export reports from anywhere.
Modular by design, without licensing traps. Start small and scale as you grow: the XTL 40 expands to 640 slots in a standard 48U rack simply by adding modules—no special alignment rigs, and no capacity-on-demand or partitioning licenses to unlock what you already own. Each 3U module supports up to three half-height drives or one full-height drive, so performance can grow alongside capacity. Configure with LTO-7/8/9 (half-height) or LTO-9/10 (full-height), and choose single or redundant PSU options to match your availability requirements.
Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote updates for both library and drives, and industry-leading support with a 3-year warranty as standard, SymplyPRO XTL 40 delivers a library that is as straightforward to run as it is powerful to scale.
Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Modular scalability — start at 3U / 40 slots and expand seamlessly to 640 slots within a standard 48U rack.
- Flexible connectivity — choose from 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
- No restrictive licenses — scale slots and drives as needed with no capacity-on-demand or partitioning licenses required.
- Total capacity — up to 1.6 PB raw per module, scaling to 25.6 PB raw per library with LTO-10 enterprise/aramid media (40 → 640 slots).
- Choice of drives — supports up to 3x half-height (LTO-7/8/9) or 1x full-height (LTO-9/10) drive per module.
- Mixed drive support — compatible with combinations of half-height and full-height drives.
- Operations at a glance — 4-inch front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
- Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
- Symply Magazine Transport Case — a military-grade transport case for XTL 40 magazines, supports safe, secure movement from rack to vault.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam Backup & Replication, Cohesity NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister Pro, YoYotta, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
- Operational control — password-protected, browser-based management for authorized administrators; clear audit trails via event logs.
- PSU options — single PSU standard; redundant PSU configurations available.
- Power-efficient expansion — media-only expansion modules include no power supplies, reducing overall energy usage.
- Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
- Removable magazines — enables fast and safe bulk loading and unloading of media.
- Rack configuration — ball-bearing slides included for smooth installation and service access.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Robotics — engineered for reliability with up to 2,000,000 MSBF (robotic picks).
- Simple expansion — easy module add-on with no special alignment required.
- Warranty — includes a 3-year warranty and industry-leading support.
| 3U Per Module | 48U Total | |
| Max Configuration | Base Module + 15 Expansion Modules | |
| Number of Tape Slots | 40 Per Module | 640 Total |
| Number of Half-Height Tape Drives | 3 Per Module | 48 Total |
| Number of Full-Height Tape Drives | 1 Per Module | 16 Total |
| Mail Slots (Import/Export) | 5 Per Module | 80 Total |
| Number of Magazines | 2 Per Module | 32 Total |
| Max Partitions | Maximum 20 (dynamically configurable) |
Contact us, and our team of experts will help you find the right solution for your workflow.
Interface
| Native Interface | SAS | Fibre Channel |
| LTO-7 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-8 | 6 Gb SFF-8088 | 8 Gb LC |
| LTO-9 | 12 Gb SFF-8644 | 8 Gb LC |
| LTO-10 | 12 Gb SFF-8644 | 32 Gb LC |
| Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3 |
System Power & Reliability
| Robotic MSBF | 2,000,000 |
| Power Connection | AC 100-240V, 3,5 / 1,5A, 50-60Hz |
| Number of Power Supplies (80 PLUS Gold Standard) | 1 or 2 Per Module (Up to 32 Total) |
| Power Consumption | ca. 170W with 3 drives (based on half-height drives) |
Dimensions
| Height | 133 mm (5.25 in) |
| Width | 482 mm (18.98 in) |
| Depth | 873 mm (34.37 in) |
| Weight (No Tape Drives) | 25.1 Kg (55.34 lb) |
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) | 400 MB/Sec (1000 MB/Sec) | 40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 | 400 MB/Sec (1000 MB/Sec) | 30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 | 400 MB/Sec (1000 MB/Sec) | 18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 | 360 MB/Sec (900 MB/Sec) | 12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 | 300 MB/Sec (750 MB/Sec) | 18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 | 300 MB/Sec (750 MB/Sec) | 12 TB (30 TB) |
| LTO-7 Half Height | LTO-7 | 300 MB/Sec (750 MB/Sec) | 6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type | MTBF (Hours) | MSBF (Mean Swaps Before Failure) | Load / Unload Cycles |
| Full-Height | 250,000 @ 100% Duty Cycle | 100,000 | 300,000 |
| Half-Height | 250,000 @ 100% Duty Cycle | 100,000 | 80,000 |
Environmental Specifications
| Environmental Factor | Recommended1 | Allowable2 | Non-Operating |
| Dry-Bulb Temperature | LTO-9 and LTO-10: 15 to 25 °C (59 to 77 °F) LTO-7 and LTO-8: 16 to 25 °C (61 to 77 °F) |
LTO-9 and LTO-10: 15 to 30 °C (59 to 86 °F) LTO-7 and LTO-8: 16 to 35 °C (61 to 95 °F) |
5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 50% (non-condensing) | 20 to 80% (non-condensing) | 20 to 80% (non-condensing) |
| Maximum Temperature Change | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour | 5 °C (41 °F) / hour |
| Maximum Humidity Change | 5% / hour | 5% / hour | 5% / hour |
| Temperature Limitation for Humidity Conditions | LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F) |
||
| Maximum Altitude | 3,048 m (10,000 ft) | 3,048 m (10,000 ft) | 12,192 m (40,000 ft) |
| Dust concentration | Less than 200 microgram / cubic meter |
Storage & Shipping
| Condition | Environmental Specification |
| Short-term storage conditions | See operating conditions |
| Long-term storage conditions | See operating conditions |
| Shipping conditions3 | 5 to 45 °C (41 to 113 °F); 10% to 80% RH non-condensing; 26 °C (72 °F) dew point maximum |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
| XTL 8 | XTL 24 | XTL 40 | XTL 80 | |
| LTO Drive Supported | LTO-7, 8, 9 | LTO-8, 9 | LTO-7, 8, 9, 10 | LTO-7, 8, 9, 10 |
| Rack Units | 1U | 2U | 3U | 6U |
| Number of Tape Slots | 8 | 24 | 40 (640 total max) | 80 (560 total max) |
| Number of Half Height Drives | 1 | 2 | 3 (48 total max) | 6 (42 total max) |
| Number of Full Height Drives | n/a | n/a | 1 (16 total max) | 3 (21 total max) |
| Mail Slots (Import/Export) | 1 | 2 | 5 (80 total max) | 10 (70 total max) |
| Number of Magazines | 2 | 2 | 2 (32 total max) | 2 (32 total max) |
| Number of Expansion Modules | n/a | n/a | 15 | 6 |
| Redundant Power Supplies | n/a | n/a | Optional | Included |
| SAS Interface | ✔ | ✔ | ✔ | ✔ |
| FC Interface | ✔ | ✔ | ✔ | ✔ |
| 10GbE iSCSI Interface | Optional (external) | ✔ | ✔ | ✔ |
| Thunderbolt 3 Interface | Optional (external) | ✔ | ✔ | ✔ |
| Rack Mount Kit | ✔ | ✔ | ✔ | ✔ |
| Barcode Reader | ✔ | ✔ | ✔ | ✔ |
| Height | 44 mm (1.73 in) | 87 mm (3.42 in) | 133 mm (5.25 in) | 268 mm (10.55 in) |
| Width | 482 mm (18.97 in) | 482 mm (18.97 in) | 482 mm (18.98 in) | 482 mm (18.98 in) |
| Depth | 806 mm (31.73 in) | 806 mm (31.73 in) | 873 mm (34.37 in) | 895 mm (35.23 in) |
| Weight (no drives) | 11 Kg (24 lb) | 15 Kg (34 lb) | 25.1 Kg (55.34 lb) | 41 Kg (90.38 lb) |
| Power | 100 – 240 VAC/80 W | 100 – 240 VAC/160 W | 100 – 240 VAC/300 W | 100 – 240 VAC/300 W |
| Robotic MSBF | 1,000,000 | 1,000,000 | 2,000,000 | 3,000,000 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
