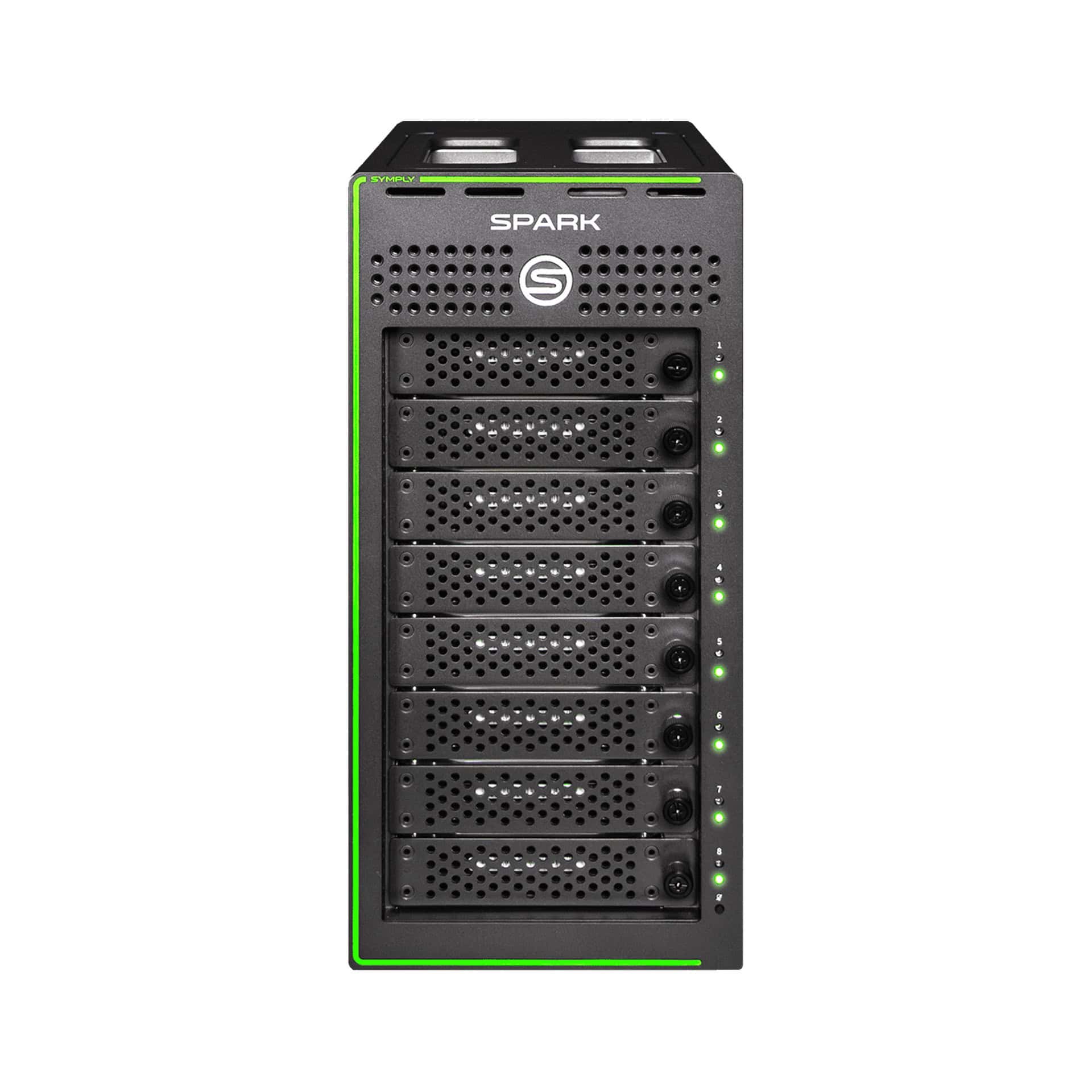

SPARK 8-Bay Thunderbolt RAID
SPARK 8-Bay Thunderbolt RAID for 4K and 8K video editing. Up to 240 TB of enterprise-class hard drives and up to 1,700 MB/s, with dual Thunderbolt 3, hardware RAID protection and user-serviceable drives, fan and power supply.
Got a question? Reach out to us—our team is ready to help!
Product Details
SPARK 8-Bay Thunderbolt RAID for 4K and 8K Video Editing
The SPARK 8-Bay is direct-attached Thunderbolt RAID storage (DAS) built for editors, colorists and VFX artists working with high-bitrate media. Eight enterprise-class hard drives deliver up to 240 TB of raw capacity and up to 1,700 MB/s, enough for multi-stream 4K and 8K editing, color grading and large media libraries, with plug-and-play setup on macOS and Windows.
Your content stays protected. SPARK supports hardware RAID 0, 1, 5, 6, 10 and JBOD and ships configured in RAID 5, so you keep working even in the unlikely event of a drive failure. For extra protection on large projects, RAID 6 keeps your data safe even if two drives fail.
Two Thunderbolt™ 3 ports support daisy-chaining and fast device charging, and the SymplyLOCK™ cable lock prevents accidental disconnects mid-transfer. At under 40 dB, the 8-Bay is quiet enough for the edit suite, and Studio Mode turns off the LEDs for light-sensitive rooms.
Built for uptime: hot-swap drive caddies plus a field-replaceable fan and power supply mean you never have to send the system away with your content on it. As your setup grows, the optional 4U SPARK Rack Kit moves the 8-Bay from desktop to rack in under five minutes.
Every SPARK is backed by a 5-year worldwide warranty and free lifetime online support from trained media professionals. Need something more compact? See the SPARK 4-Bay, or compare both on the SPARK page.
- SPARK 8-Bay with drives installed
- 1x 2m (6.5 ft) active Thunderbolt 3 cable
- 1x SymplyLOCK™ Thunderbolt cable lock
- 1x power cable
- Dual Thunderbolt™ 3 — two ports for high throughput, daisy-chaining and fast device charging.
- 8-bay Thunderbolt RAID — up to 240 TB using enterprise-class hard drives.
- Performance for 4K and 8K video editing — up to 1,700 MB/s.
- Hardware RAID protection — RAID 0, 1, 5, 6, 10 and JBOD. Ships in RAID 5 to keep you working even in the unlikely event of a drive failure.
- User serviceable — hot-swap drive caddies with locking pin and thumbscrews, plus a field-replaceable fan and power supply.
- Rugged and portable — robust all-metal build, integrated carry handle and AC 110–240V power supply.
- Whisper quiet — under 40 dB, ideal for desktop and on-set use.
- Studio Mode — LED blackout for light-sensitive studio and on-set environments.

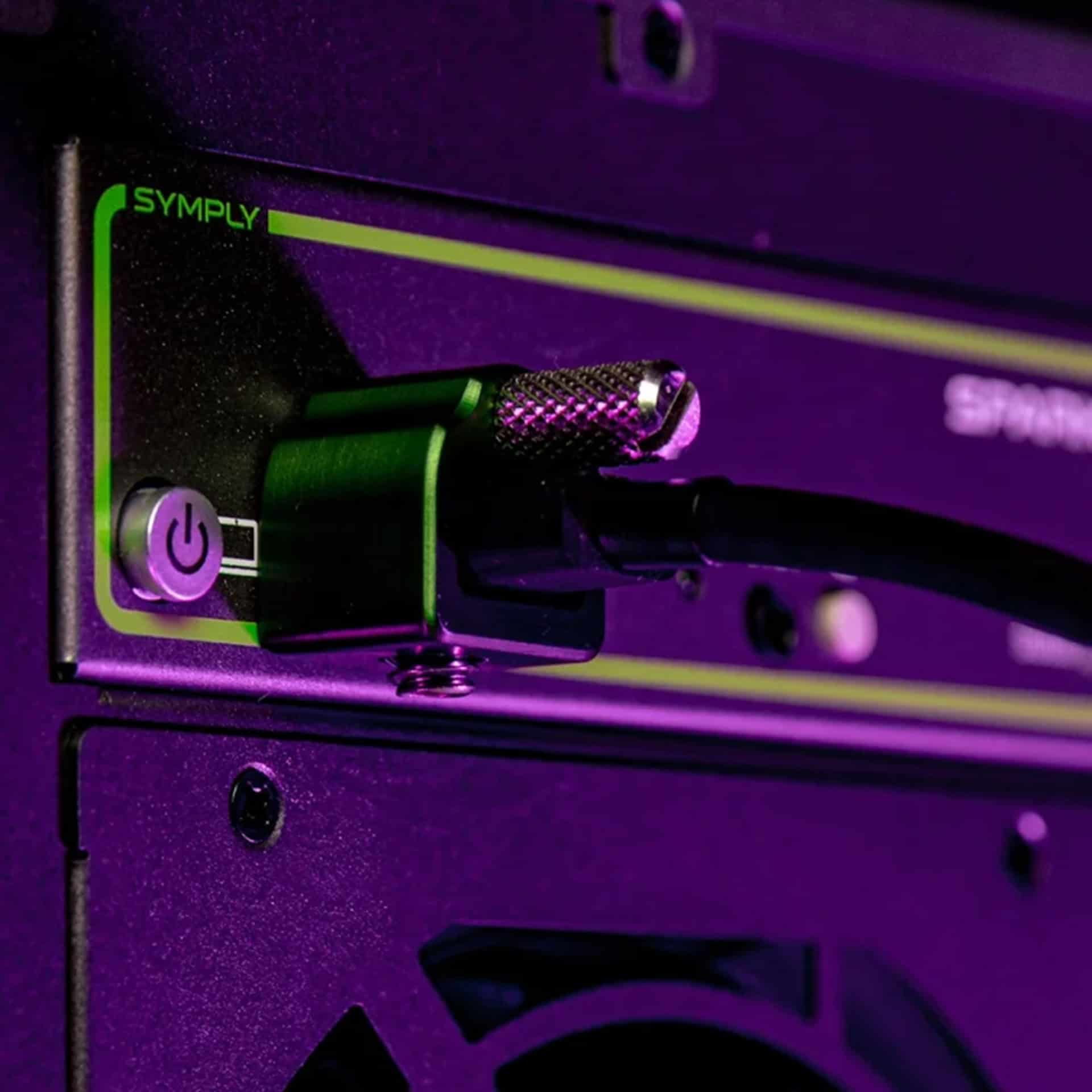

- Secure connections — SymplyLOCK™ machined aluminum Thunderbolt cable lock and Kensington® lock slot.
- Optional accessories — NANUK wheeled transport case with custom foam insert, 4U SPARK Rack Kit and SymplySAM self-assisted maintenance kit.
- macOS and Windows — plug-and-play support on both platforms.
- Warranty and support — 5-year worldwide warranty and free lifetime online support.
SPARK 8-Bay Specifications
| SPARK 8-Bay | |
| Drive Bays | 8 |
| Host Interface | 2 x Thunderbolt 3 with device charging |
| RAID Levels | 0, 1, 5, 6, 10, JBOD (ships in RAID 5) |
| Performance | Up to 1,700 MB/s |
| Dimensions (D x W x H) | 24.0 x 15.0 x 31.8 cm (9.4 x 5.9 x 12.5 in) |
| Weight | 10.8 kg (23.8 lb) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 5% to 85% (non-condensing) |
| Acoustics | Under 40 dB |
| OS Support | macOS and Windows |
| Warranty | 5 years, worldwide |
Capacity
| Raw Capacity | Usable Capacity (RAID 5)* | Performance |
| 80 TB | ~70 TB | Up to 1,700 MB/s |
| 128 TB | ~112 TB | Up to 1,700 MB/s |
| 144 TB | ~126 TB | Up to 1,700 MB/s |
| 192 TB | ~168 TB | Up to 1,700 MB/s |
| 240 TB | ~210 TB | Up to 1,700 MB/s |
* RAID 5 (default) reserves one drive’s worth of capacity for parity. Usable figures are approximate and shown before formatting. RAID 0 provides full raw capacity with no redundancy.
| Feature | SPARK 8-Bay | SDP G-RAID 8 | Areca ARC-8050T3-8 |
Promise R32 8 Bay |
OWC Thunderbay 8 |
| Robust all-metal build | |||||
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |||||
| User Serviceable HDD, PSU & FAN | |||||
| Library Quiet | Not Published | Not Published | Not Published | ||
| Carry Handle | |||||
| Lights Out Mode | |||||
| HDD Locking Pin | |||||
| MA HDD Support | |||||
| Kensington Lock | |||||
| Wheeled hard case option | |||||
| Dimensions | 150 x 240 x 318 | 175 x 245 x 385 | 146 x 302 x 290 | 187 x 245 x 310 | 180 x 260 x 240 |
| Weight | 10.8kg | 12.3kg | 6.8kg (without HDDs) | 11kg | 7.3kg |
Description
SPARK 8-Bay Thunderbolt RAID for 4K and 8K Video Editing
The SPARK 8-Bay is direct-attached Thunderbolt RAID storage (DAS) built for editors, colorists and VFX artists working with high-bitrate media. Eight enterprise-class hard drives deliver up to 240 TB of raw capacity and up to 1,700 MB/s, enough for multi-stream 4K and 8K editing, color grading and large media libraries, with plug-and-play setup on macOS and Windows.
Your content stays protected. SPARK supports hardware RAID 0, 1, 5, 6, 10 and JBOD and ships configured in RAID 5, so you keep working even in the unlikely event of a drive failure. For extra protection on large projects, RAID 6 keeps your data safe even if two drives fail.
Two Thunderbolt™ 3 ports support daisy-chaining and fast device charging, and the SymplyLOCK™ cable lock prevents accidental disconnects mid-transfer. At under 40 dB, the 8-Bay is quiet enough for the edit suite, and Studio Mode turns off the LEDs for light-sensitive rooms.
Built for uptime: hot-swap drive caddies plus a field-replaceable fan and power supply mean you never have to send the system away with your content on it. As your setup grows, the optional 4U SPARK Rack Kit moves the 8-Bay from desktop to rack in under five minutes.
Every SPARK is backed by a 5-year worldwide warranty and free lifetime online support from trained media professionals. Need something more compact? See the SPARK 4-Bay, or compare both on the SPARK page.
What's in the box?
- SPARK 8-Bay with drives installed
- 1x 2m (6.5 ft) active Thunderbolt 3 cable
- 1x SymplyLOCK™ Thunderbolt cable lock
- 1x power cable
Features & Benefits
- Dual Thunderbolt™ 3 — two ports for high throughput, daisy-chaining and fast device charging.
- 8-bay Thunderbolt RAID — up to 240 TB using enterprise-class hard drives.
- Performance for 4K and 8K video editing — up to 1,700 MB/s.
- Hardware RAID protection — RAID 0, 1, 5, 6, 10 and JBOD. Ships in RAID 5 to keep you working even in the unlikely event of a drive failure.
- User serviceable — hot-swap drive caddies with locking pin and thumbscrews, plus a field-replaceable fan and power supply.
- Rugged and portable — robust all-metal build, integrated carry handle and AC 110–240V power supply.
- Whisper quiet — under 40 dB, ideal for desktop and on-set use.
- Studio Mode — LED blackout for light-sensitive studio and on-set environments.
- Secure connections — SymplyLOCK™ machined aluminum Thunderbolt cable lock and Kensington® lock slot.
- Optional accessories — NANUK wheeled transport case with custom foam insert, 4U SPARK Rack Kit and SymplySAM self-assisted maintenance kit.
- macOS and Windows — plug-and-play support on both platforms.
- Warranty and support — 5-year worldwide warranty and free lifetime online support.
Specifications
SPARK 8-Bay Specifications
| SPARK 8-Bay | |
| Drive Bays | 8 |
| Host Interface | 2 x Thunderbolt 3 with device charging |
| RAID Levels | 0, 1, 5, 6, 10, JBOD (ships in RAID 5) |
| Performance | Up to 1,700 MB/s |
| Dimensions (D x W x H) | 24.0 x 15.0 x 31.8 cm (9.4 x 5.9 x 12.5 in) |
| Weight | 10.8 kg (23.8 lb) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 5% to 85% (non-condensing) |
| Acoustics | Under 40 dB |
| OS Support | macOS and Windows |
| Warranty | 5 years, worldwide |
Capacity
| Raw Capacity | Usable Capacity (RAID 5)* | Performance |
| 80 TB | ~70 TB | Up to 1,700 MB/s |
| 128 TB | ~112 TB | Up to 1,700 MB/s |
| 144 TB | ~126 TB | Up to 1,700 MB/s |
| 192 TB | ~168 TB | Up to 1,700 MB/s |
| 240 TB | ~210 TB | Up to 1,700 MB/s |
* RAID 5 (default) reserves one drive’s worth of capacity for parity. Usable figures are approximate and shown before formatting. RAID 0 provides full raw capacity with no redundancy.
Comparison
| Feature | SPARK 8-Bay | SDP G-RAID 8 | Areca ARC-8050T3-8 |
Promise R32 8 Bay |
OWC Thunderbay 8 |
| Robust all-metal build | |||||
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |||||
| User Serviceable HDD, PSU & FAN | |||||
| Library Quiet | Not Published | Not Published | Not Published | ||
| Carry Handle | |||||
| Lights Out Mode | |||||
| HDD Locking Pin | |||||
| MA HDD Support | |||||
| Kensington Lock | |||||
| Wheeled hard case option | |||||
| Dimensions | 150 x 240 x 318 | 175 x 245 x 385 | 146 x 302 x 290 | 187 x 245 x 310 | 180 x 260 x 240 |
| Weight | 10.8kg | 12.3kg | 6.8kg (without HDDs) | 11kg | 7.3kg |
