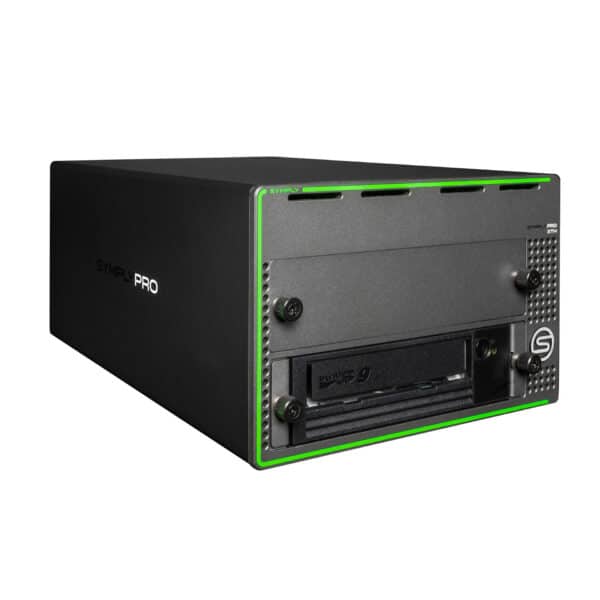

SymplyPRO XTH SAS – Desktop
This affordable, dual half-height LTO drive is housed in a sleek and rugged metal alloy enclosure and a premium cooling fan that blends durability with modern design. Compact yet feature-rich, it is fully LTFS compatible for simple drag-and-drop file transfers.
Got a question? Reach out to us—our team is ready to help!
Product Details
SymplyPRO SAS brings that reliability together with a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO SAS configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO SAS is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO SAS integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in any environment.
- SymplyPRO XTH SAS enclosure * 1PC
- Half-Height LTO Drive(s) with Symply CableLess technology * 1PC or 2PC
- Data Cartridge * 1PC
- Cleaning Cartridge * 1PC
- SAS Cable 2m * 1PC
- SymplyLOCK * 1PC
- Power Cable * 1PC
- 3-Year Warranty * 1PC
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, and Bareos.
- Security & compliance built-in — AES-256 hardware encryption (app-managed keys) and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with a high-quality 2m SAS cable, plus data and cleaning cartridges.
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | D x W x H | Weight |
|
PRO SAS XTH |
Half-Height | 1 or 2 | 7, 8, 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm |
5.6 kg (12.3 lb) |
* SFF-8644 version available.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
 Installing an additional drive |
Description
SymplyPRO SAS brings that reliability together with a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO SAS configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO SAS is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO SAS integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in any environment.
What's in the box?
- SymplyPRO XTH SAS enclosure * 1PC
- Half-Height LTO Drive(s) with Symply CableLess technology * 1PC or 2PC
- Data Cartridge * 1PC
- Cleaning Cartridge * 1PC
- SAS Cable 2m * 1PC
- SymplyLOCK * 1PC
- Power Cable * 1PC
- 3-Year Warranty * 1PC
Features & Benefits
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, and Bareos.
- Security & compliance built-in — AES-256 hardware encryption (app-managed keys) and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with a high-quality 2m SAS cable, plus data and cleaning cartridges.
Specifications
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | D x W x H | Weight |
|
PRO SAS XTH |
Half-Height | 1 or 2 | 7, 8, 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm |
5.6 kg (12.3 lb) |
* SFF-8644 version available.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
18 TB (45 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
