SPARK XT takes performance to the next level with 8x MACH.2 drives in a RAID 5 configurationideal for intensive 8K+ video, VFX, simulation, and high-volume ingest workflows. Delivering real-world read/write speeds of up to 2,500 MB/s and 2,000 MB/s*, SPARK XT 8-Bay provides the speed and reliability that creative professionals need to keep production moving smoothly.

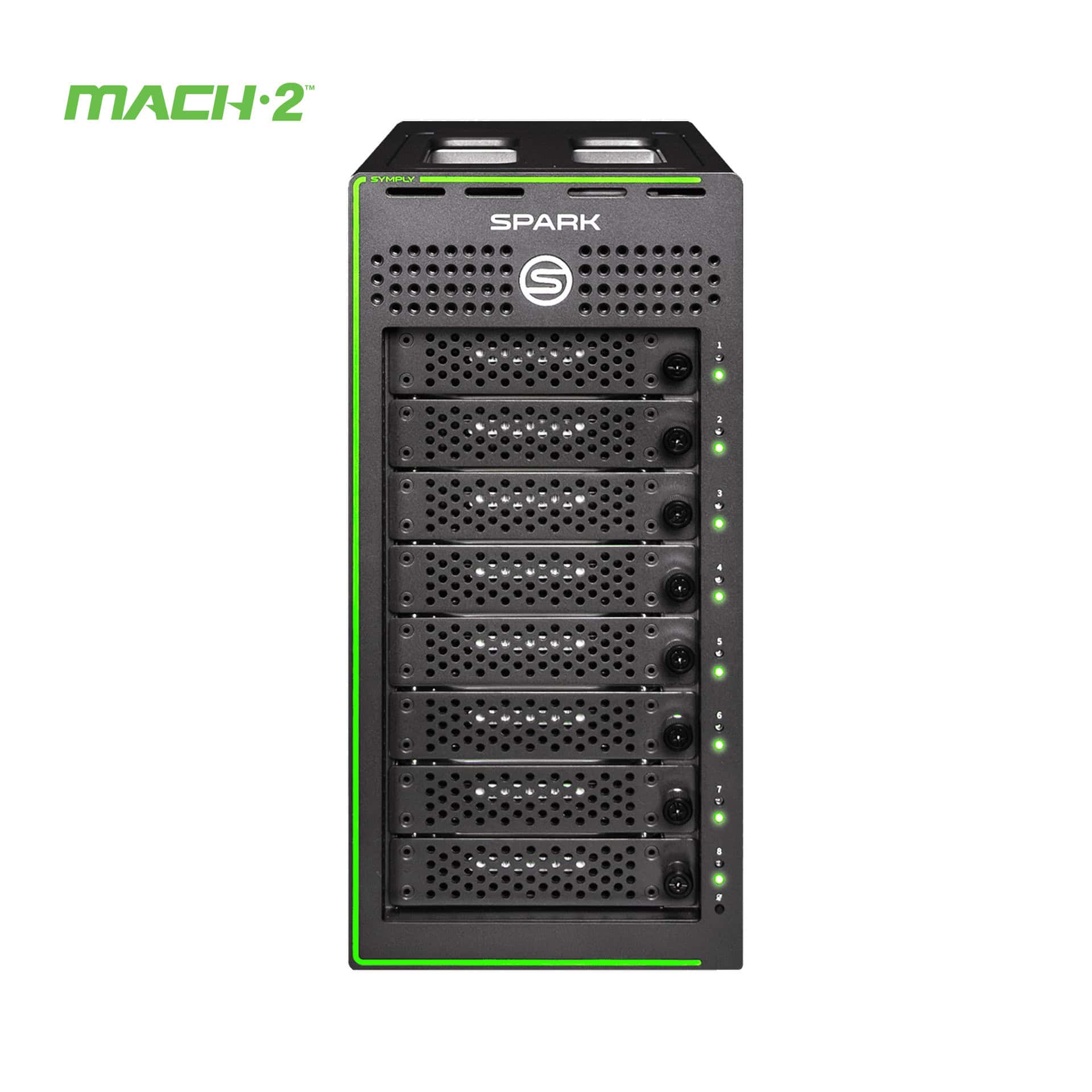

SPARK XT 8-Bay Thunderbolt RAID
Got a question? Reach out to us—our team is ready to help!
5-Year Warranty
Free Shipping
Human Support
Product Details
SPARK XT 8-Bay – SSD Speeds, HDD Price
The Symply SPARK XT 8-Bay delivers SSD-like speed without sacrificing capacity or budget. Powered by Seagate MACH.2 multi-actuator drives in a RAID 5 configuration, SPARK XT achieves real-world read/write speeds at around 2,000 MB/s and 2,500 MB/s* —perfect for demanding 8K+ video, VFX, simulation, and high-volume ingest workflows.
With up to 144TB of storage in a compact, durable form factor, SPARK XT is built for both studio environments and on-set use. It’s optimized for creatives who need speed and stability without the trade-offs of flash storage. MACH.2 drives use innovative dual-actuator technology to double read/write performance, making SPARK XT the ideal balance of performance, capacity, and cost-efficiency.
SPARK XT is also field-serviceable—fans and power supplies can be replaced quickly without shipping your system back or risking valuable content. Add the optional SAM (Self-Self-Assisted Maintenance) kit to replace parts on-site in minutes.
Need rack mounting? The SPARK Rack Kit is also available for purchase, which turns your desktop setup into a rack-mounted solution in under five minutes, with extendable rails and tool-free assembly.
Whether you’re backing up camera cards on location or delivering finished content in post, SPARK XT gives you the performance and flexibility to meet your most demanding workflow needs.
*Actual performance may vary based on configuration, workload, and operating environment.
SPARK XT 8-Bay enclosure with 8x MACH.2 HDD drives * 1PC
Premium Thunderbolt 3 Cable 2m * 1PC
SymplyLOCK * 1PC
Power Cable * 1PC
5-Year Warranty * 1PC

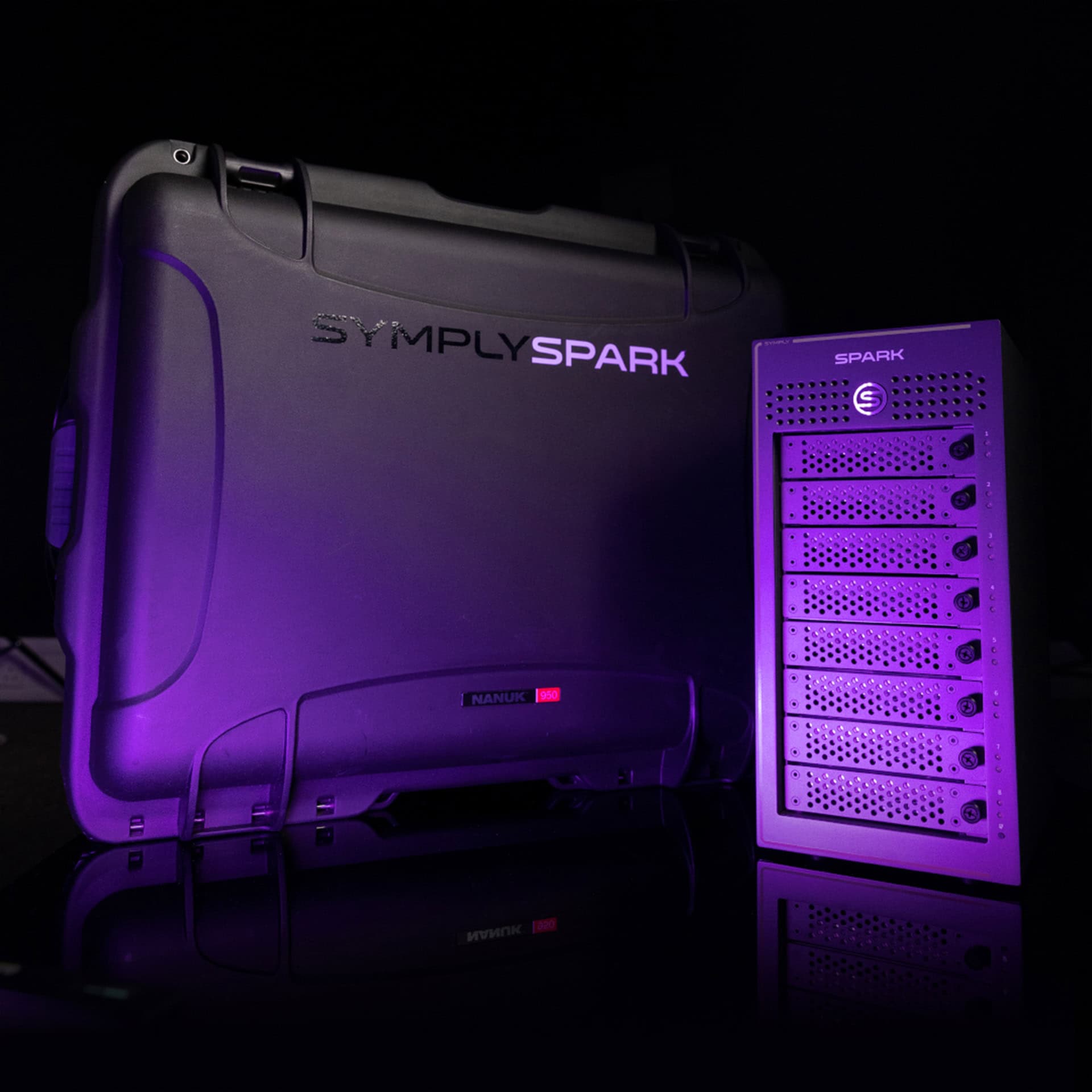

NANUK Case * 1PC (Optional)
- Lightweight, Portable, and Rugged Design
- Compact 8-Bay Design
- Whisper Quiet < 40dB, ideal for desktop use
- MACH.2 drives for blistering performance
- Hot-Swap drive caddies with locking pin and thumbscrews

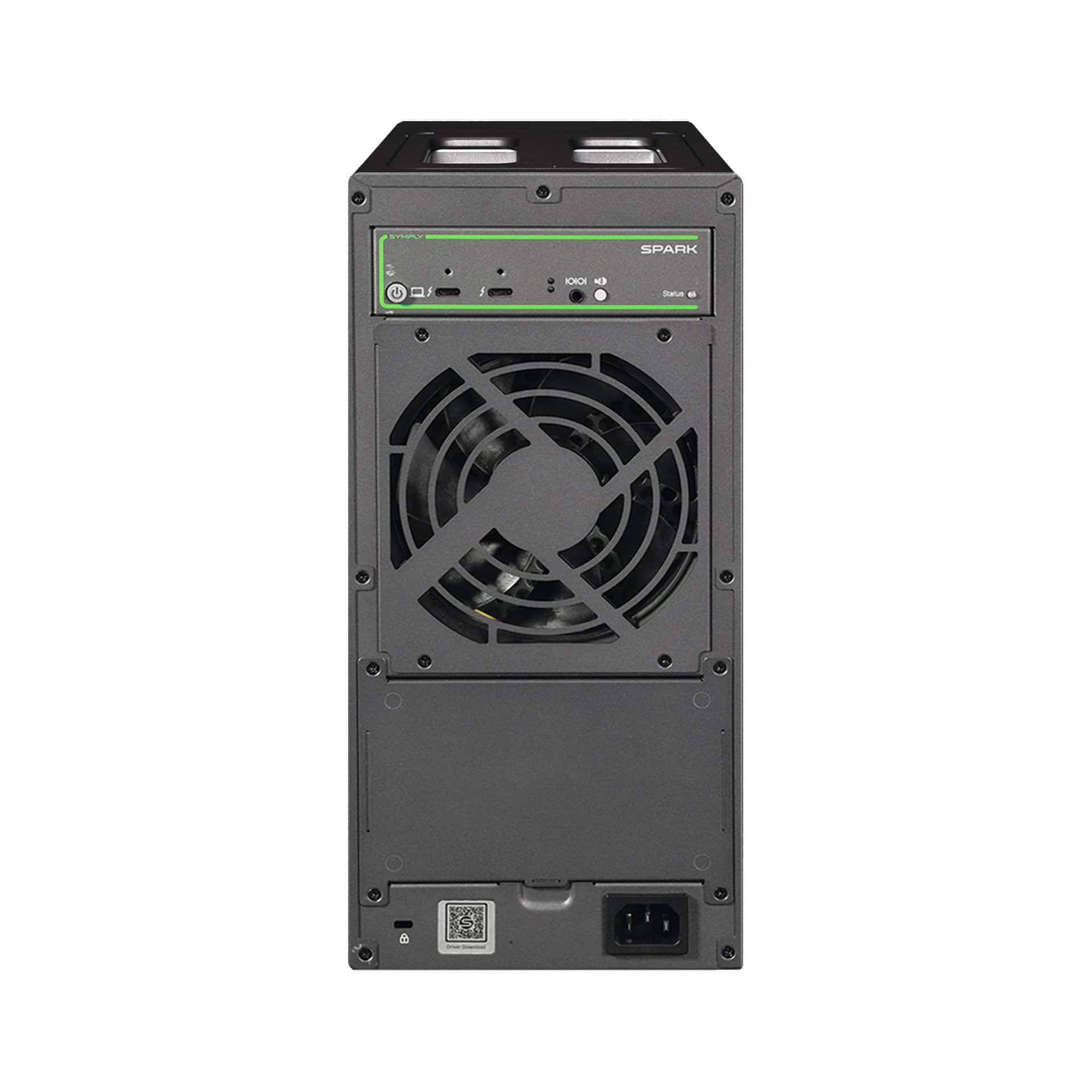

- Dual Thunderbolt 3 ports for the highest throughput, daisy chaining, and fast device charging
- Advanced field serviceable design for maximum uptime
- Fast, reliable RAID 5/6 Protection to prevent content loss and keep you working even in the unlikely event of a drive failure
- Premium 2m (6.5ft) Active Thunderbolt 3 Cable Included
- Includes SymplyLOCK, a Beautifully Machined Aluminium Thunderbolt Cable Locking
- Kensington Lock
- Optional high-quality, impact-resistant wheeled Transport Case
- Optional 4RU Rackmount Kit
- Optional SAM Kit (Self-Assisted Maintenance kit)
- Supported by the Symply worldwide 5-year warranty and free lifetime and online support by trained media professionals.
| Capacities | 144TB |
| Number of Drive Bays | 8 |
| RAID Level Support | 0, 1, 5, 6, 10, JBOD |
| Interface | 2 x Thunderbolt 3 with Device Charging |
| Dimensions (W x D x H) mm | 150 x 240 x 318 |
| Weight KGs | 10.8kg |
| Operating Environment | 0°C – 40°C, 5% – 85% humidity (non-condensing) |
| OS Support | macOS & Windows |
| Whisper Quiet | < 40dB |
| Carry Handle | Yes |
| User Serviceable HDD, PSU & FAN | Yes |
| Kensington Lock | Yes |
| Studio Mode | LED Blackout |
| Wheeled Transport Case | Optional |
| Warranty | 5-Years |
| Feature | SPARK XT 8 Bay | SDP G-RAID 8 | Areca ARC-8050T3-8 |
Promise R32 8 Bay |
OWC Thunderbay 8 |
| Robust all-metal build |  |
 |
|
|
|
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |
|
|
|
|
| User Serviceable HDD, PSU & FAN | |
|
|
|
|
| Library Quiet | |
Not Published | |
Not Published | Not Published |
| Carry Handle | |
|
|
|
|
| Lights Out Mode | |
|
|
|
|
| HDD Locking Pin | |
|
|
|
|
| MA HDD Support | |
|
|
|
|
| Kensington Lock | |
|
|
|
|
| Wheeled hard case option | |
|
|
|
|
| Dimensions | 150 x 240 x 318 | 175 x 245 x 385 | 146 x 302 x 290 | 187 x 245 x 310 | 180 x 260 x 240 |
| Weight | 10.8kg | 12.3kg | 6.8kg (without HDDs) | 11kg | 7.3kg |
| Smaller and Lighter | n/a | Yes | Yes | Yes | Yes |
Description
SPARK XT 8-Bay – SSD Speeds, HDD Price
The Symply SPARK XT 8-Bay delivers SSD-like speed without sacrificing capacity or budget. Powered by Seagate MACH.2 multi-actuator drives in a RAID 5 configuration, SPARK XT achieves real-world read/write speeds at around 2,000 MB/s and 2,500 MB/s* —perfect for demanding 8K+ video, VFX, simulation, and high-volume ingest workflows.
With up to 144TB of storage in a compact, durable form factor, SPARK XT is built for both studio environments and on-set use. It’s optimized for creatives who need speed and stability without the trade-offs of flash storage. MACH.2 drives use innovative dual-actuator technology to double read/write performance, making SPARK XT the ideal balance of performance, capacity, and cost-efficiency.
SPARK XT is also field-serviceable—fans and power supplies can be replaced quickly without shipping your system back or risking valuable content. Add the optional SAM (Self-Self-Assisted Maintenance) kit to replace parts on-site in minutes.
Need rack mounting? The SPARK Rack Kit is also available for purchase, which turns your desktop setup into a rack-mounted solution in under five minutes, with extendable rails and tool-free assembly.
Whether you’re backing up camera cards on location or delivering finished content in post, SPARK XT gives you the performance and flexibility to meet your most demanding workflow needs.
*Actual performance may vary based on configuration, workload, and operating environment.
What's in the box?
SPARK XT 8-Bay enclosure with 8x MACH.2 HDD drives * 1PC
Premium Thunderbolt 3 Cable 2m * 1PC
SymplyLOCK * 1PC
Power Cable * 1PC
5-Year Warranty * 1PC
NANUK Case * 1PC (Optional)
Features & Benefits
- Lightweight, Portable, and Rugged Design
- Compact 8-Bay Design
- Whisper Quiet < 40dB, ideal for desktop use
- MACH.2 drives for blistering performance
- Hot-Swap drive caddies with locking pin and thumbscrews
- Dual Thunderbolt 3 ports for the highest throughput, daisy chaining, and fast device charging
- Advanced field serviceable design for maximum uptime
- Fast, reliable RAID 5/6 Protection to prevent content loss and keep you working even in the unlikely event of a drive failure
- Premium 2m (6.5ft) Active Thunderbolt 3 Cable Included
- Includes SymplyLOCK, a Beautifully Machined Aluminium Thunderbolt Cable Locking
- Kensington Lock
- Optional high-quality, impact-resistant wheeled Transport Case
- Optional 4RU Rackmount Kit
- Optional SAM Kit (Self-Assisted Maintenance kit)
- Supported by the Symply worldwide 5-year warranty and free lifetime and online support by trained media professionals.
Specifications
| Capacities | 144TB |
| Number of Drive Bays | 8 |
| RAID Level Support | 0, 1, 5, 6, 10, JBOD |
| Interface | 2 x Thunderbolt 3 with Device Charging |
| Dimensions (W x D x H) mm | 150 x 240 x 318 |
| Weight KGs | 10.8kg |
| Operating Environment | 0°C – 40°C, 5% – 85% humidity (non-condensing) |
| OS Support | macOS & Windows |
| Whisper Quiet | < 40dB |
| Carry Handle | Yes |
| User Serviceable HDD, PSU & FAN | Yes |
| Kensington Lock | Yes |
| Studio Mode | LED Blackout |
| Wheeled Transport Case | Optional |
| Warranty | 5-Years |
Comparison
| Feature | SPARK XT 8 Bay | SDP G-RAID 8 | Areca ARC-8050T3-8 |
Promise R32 8 Bay |
OWC Thunderbay 8 |
| Robust all-metal build | |
|
|
|
|
| Interfaces | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 | Thunderbolt 3 & USB 3.2 | Thunderbolt 3 |
| Hardware RAID Engine | |
|
|
|
|
| User Serviceable HDD, PSU & FAN | |
|
|
|
|
| Library Quiet | |
Not Published | |
Not Published | Not Published |
| Carry Handle | |
|
|
|
|
| Lights Out Mode | |
|
|
|
|
| HDD Locking Pin | |
|
|
|
|
| MA HDD Support | |
|
|
|
|
| Kensington Lock | |
|
|
|
|
| Wheeled hard case option | |
|
|
|
|
| Dimensions | 150 x 240 x 318 | 175 x 245 x 385 | 146 x 302 x 290 | 187 x 245 x 310 | 180 x 260 x 240 |
| Weight | 10.8kg | 12.3kg | 6.8kg (without HDDs) | 11kg | 7.3kg |
| Smaller and Lighter | n/a | Yes | Yes | Yes | Yes |
