LTO tape is the gold standard for backup and archival storage, trusted across media, healthcare, finance, education, and SMBs/SMEs. With industry-leading capacity and the lowest cost per terabyte, LTO provides a reliable, long-term solution for protecting large volumes of data.
Built for modern data protection, LTO supports the 3-2-1-1 strategy—three copies of data on two media types, with one copy off-site and one offline—delivering an affordable layer of protection against ransomware and data loss. Security and compliance are built in with WORM media and AES-256 hardware encryption to ensure data integrity and protection at rest.
Below, you can explore our full range of Desktop LTO solutions with Thunderbolt, Ethernet, or SAS connectivity. Available in half-height and full-height configurations, Symply systems support LTO-7, LTO-8, LTO-9, and the latest LTO-10 generation, offering flexible options to match your workflow and budget.
New to LTO? Click here and learn how the 3-2-1-1-0 strategy works, why LTO is essential for data-heavy workflows, and how it can dramatically reduce your long-term storage costs.
SymplyPRO Connectivity

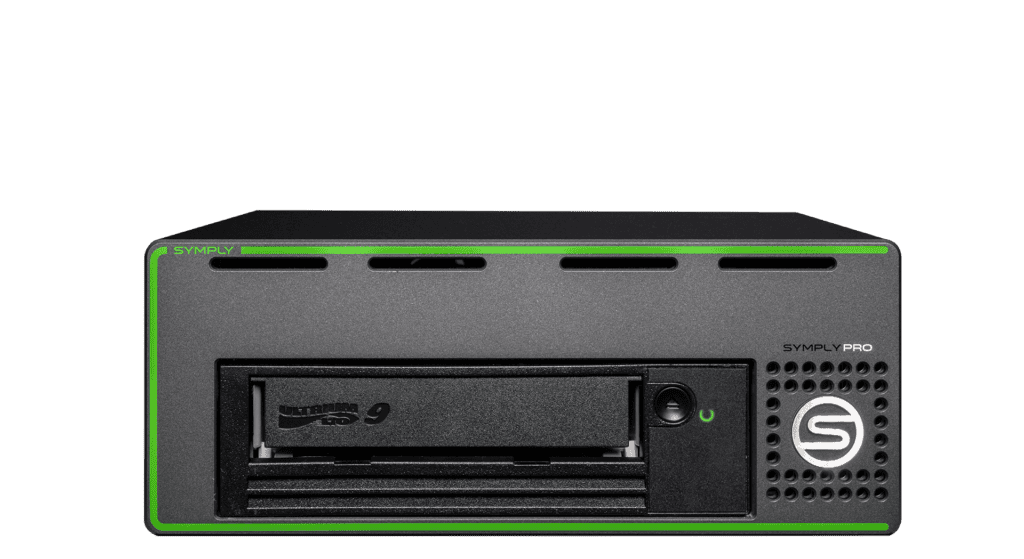

PRO Thunderbolt
PRO Thunderbolt XTH (Single)
PRO Thunderbolt XTH (Dual)

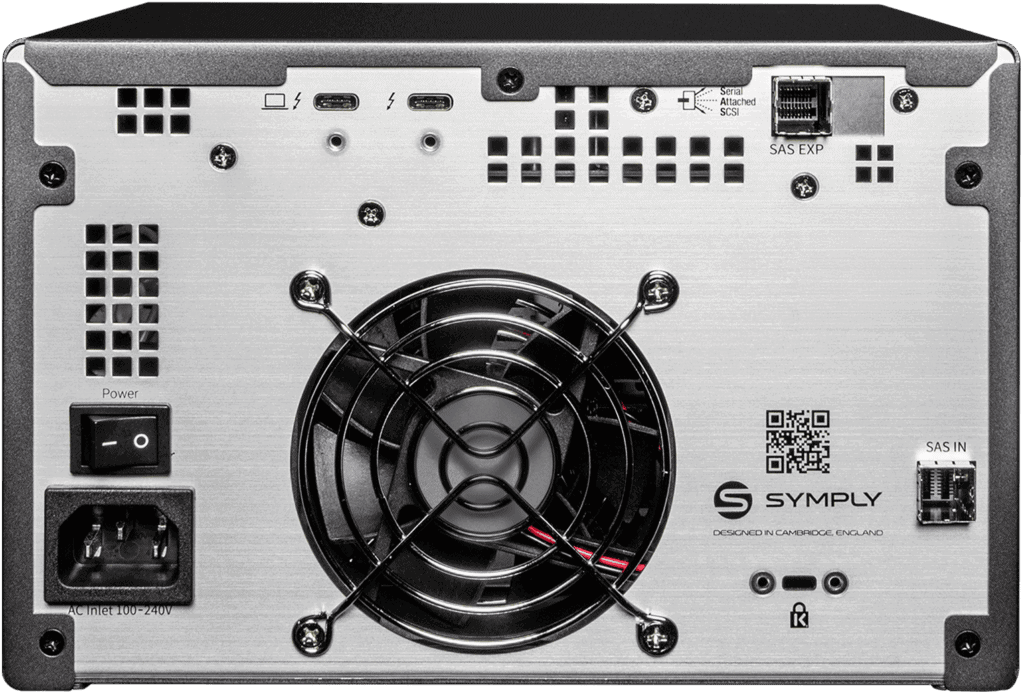

PRO Thunderbolt XTF
SymplyPRO Thunderbolt is built with creatives in mind. Unlike re-purposed IT boxes, these desktop systems are designed from the ground up for studio, on-set, and lab use, delivering years of reliable, trouble-free service. Featuring a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling fan. Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.

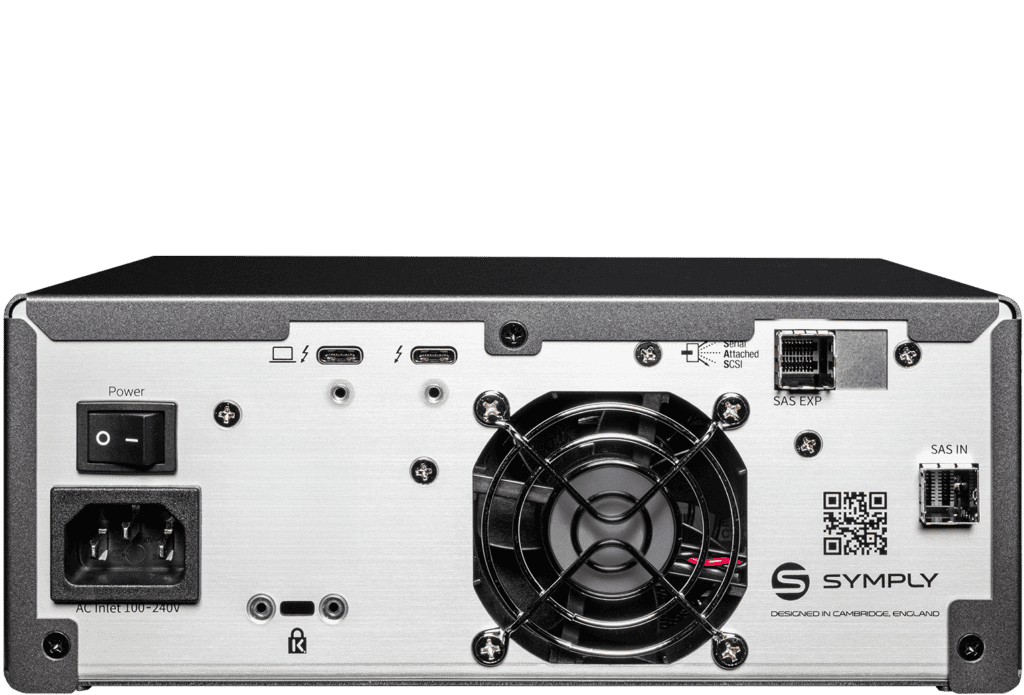

Each model comes equipped with two Thunderbolt™ 3 ports that support daisy-chaining, with one port delivering 60W of power for device charging. For additional flexibility, every unit also includes SAS Host and SAS Expansion ports, allowing you to connect other SAS devices to your Thunderbolt computer, or use the drive with a non-Thunderbolt workstation.
Every SymplyPRO Thunderbolt configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. It’s also compatible with leading backup and archive applications that support LTO—media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData; plus broader IT platforms including Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, and the open-source Bacula and Bareos.
On Windows and Linux, SymplyPRO Thunderbolt integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
- Thunderbolt™ 3 host interface with SymplyLOCK™ cable locking — dual Thunderbolt™ 3 ports with daisy-chain support (compatible with Thunderbolt 4/5 hosts), including one port providing up to 60W of device charging.
- 12Gb SAS connectivity — SAS Host and SAS Expansion ports (via Thunderbolt bridge) allow connection to non-Thunderbolt workstations and attaching additional SAS devices to a computer via Thunderbolt.
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Archiware P5, Hedge Canister, YoYotta, XenData, plus broader IT platforms and tools.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with high-quality 2m Thunderbolt cable, data and cleaning cartridges, and SymplyLOCK.
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO Thunderbolt | Half-Height | 1 | 7, 8, 9 |
2 x TB3 |
1 x SFF-8644 |
27.5 x 21.1 x 9.2 cm (11 x 8.5 x 3.5 in) |
4.0 kg (8.8 lb) |
| PRO Thunderbolt XTH | Half-Height | 1 or 2 | 7, 8, 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.3 lb) |
| PRO Thunderbolt XTF | Full-Height | 1 | 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO Thunderbolt XTF | Full-Height | 1 | 10 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5) |
7.7 kg (17.0 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
 Installing an additional drive |
PRO Ethernet XTH (Single)
PRO Ethernet XTH (Dual)
PRO Ethernet XTF
SymplyPRO Ethernet brings tape into the virtual era by making LTO drives (and libraries) accessible across standard Ethernet (iSCSI). Multiple hosts, or guest operating systems can securely share the same tape resources without the need for costly Fibre Channel infrastructure. By leveraging existing network infrastructure, organizations can lower costs, simplify operations, and scale easily as data grows.
Key benefits include:
- Reliability & Flexibility: Shared tape access for multiple hosts, or guest OSs, live VM migration with uninterrupted tape operations.
- Scalability & Control: Expand easily, by attaching existing SAS tape devices to the SymplyPRO Ethernet Desktop and manage multiple systems from a single backup server (physical or virtual).
- Efficiency: Faster backups and restores, while eliminating Fibre Channel costs and SAS distance limitations.
SymplyPRO Ethernet brings together two 10 GbE iSCSI interfaces with a robust all-metal design that’s simple to use, and low cost per TB storage capacity. Every enclosure integrates a premium PSU and efficient cooling. Choose from a dual-drive XTH desktop with one or two half-height LTO-7, LTO-8 or LTO-9, or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO Ethernet configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO Ethernet is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO Ethernet integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
- Virtualize tape drive resources – cost-effectively allow multiple hosts, or guest operating systems can securely share the same tape devices.
-
-
- Simplified connectivity using existing Ethernet infrastructure.
- Lower total cost of ownership with fewer specialized components.
- Flexible library placement unconstrained by SAS or Fibre Channel cabling.
- Easy scalability with additional iSCSI bridges or libraries.
- Support for both physical and virtual deployments.
-
-
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, Bareos, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Included cartridges — ships with data cartridges and cleaning cartridges as standard.
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO Ethernet XTH | Half-Height | 1 or 2 | 7, 8, 9 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.4 lb) |
| PRO Ethernet XTF | Full-Height | 1 | 9 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
6.4 kg (14.1 lb) |
| PRO Ethernet XTF | Full-Height | 1 | 10 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5 in) |
7.8 kg (17.2 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
PRO SAS
PRO SAS XTH (Single)
PRO SAS XTH (Dual)
PRO SAS XTF
SymplyPRO SAS brings that reliability together with a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling. Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO SAS configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO SAS is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO SAS integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in any environment.
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, and Bareos.
- Security & compliance built-in — AES-256 hardware encryption (app-managed keys) and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with a high-quality 2m SAS cable, plus data and cleaning cartridges.
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | D x W x H | Weight |
|
PRO SAS |
Half-Height | 1 | 7, 8 |
1 x SFF-8088* |
26.3 x 21.1 x 6.3 cm |
2.9 kg (6.3 lb) |
| PRO SAS | Half-Height | 1 | 9 |
1 x SFF-8644 |
26.3 x 21.1 x 6.3 cm |
2.9 kg (6.3 lb) |
|
PRO SAS XTH |
Half-Height | 1 or 2 | 7, 8, 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm |
5.6 kg (12.3 lb) |
|
PRO SAS XTF |
Full-Height | 1 | 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO SAS XTF | Full-Height | 1 | 10 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
7.7 kg (17.0 lb) |
* SFF-8644 version available.
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
PRO DIT Thunderbolt
PRO DIT Thunderbolt XTH (Single)
PRO DIT Thunderbolt XTH (Dual)
PRO DIT Thunderbolt XTF
Purpose-built for DIT applications, SymplyPRO DIT Thunderbolt LTO is a full-featured backup, archive and transfer system designed specifically for on-set and DIT data protection, with features that enhance every production and post-production pipeline.
SymplyPRO DIT Thunderbolt is based on our advanced SymplyPRO desktop line—rugged metal-alloy enclosure, premium power supply and efficient cooling—then adds multi-access ingest: a front dock for any 2.5-inch SSD or Atomos Master Caddy to enable fast, all-in-one DIT operations (ingest → verify → to-tape). Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktops use our SymplyCABLELESS™ architecture for rapid serviceability and easy upgrades.
Each model comes equipped with two Thunderbolt™ 3 ports that support daisy-chaining, with one port delivering 60W of power for device charging. For additional flexibility, every unit also includes SAS Host and SAS Expansion ports, allowing you to connect other SAS devices to your Thunderbolt computer, or use the drive with a non-Thunderbolt workstation.
Every SymplyPRO DIT Thunderbolt configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. It’s also compatible with leading backup and archive applications that support LTO— media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData; plus broader IT platforms including Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, and the open-source Bacula, and Bareos.
On Windows and Linux, SymplyPRO DIT Thunderbolt integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
- Two 2.5” SATA SSD reader bays — supports < 9 mm drives and bridges SATA SSDs to Thunderbolt.
- Thunderbolt™ 3 host interface with SymplyLOCK™ cable locking — dual Thunderbolt™ 3 ports with daisy-chain support (compatible with Thunderbolt 4/5 hosts), including one port providing up to 60W of device charging.
- 12Gb SAS connectivity — SAS Host and SAS Expansion ports (via Thunderbolt bridge) allow connection to non-Thunderbolt workstations and attaching additional SAS devices to a computer via Thunderbolt.
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Archiware P5, Hedge Canister, YoYotta, XenData, plus broader IT platforms and tools.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with high-quality 2m Thunderbolt cable, data and cleaning cartridges, and SymplyLOCK.
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO DIT Thunderbolt | Half-Height | 1 | 7, 8, 9 |
2 x TB3 |
1 x SFF-8644 |
27.5 x 21.1 x 9.2 cm (11 x 8.5 x 3.5 in) |
4.0 kg (8.8 lb) |
| PRO DIT Thunderbolt XTH | Half-Height | 1 or 2 | 7, 8, 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.3 lb) |
| PRO DIT Thunderbolt XTF | Full-Height | 1 | 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO DIT Thunderbolt XTF | Full-Height | 1 | 10 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5) |
7.7 kg (17.0 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
SymplyPRO Connectivity
Thunderbolt
Overview
PRO Thunderbolt
PRO Thunderbolt XTH (Single)
PRO Thunderbolt XTH (Dual)
PRO Thunderbolt XTF
SymplyPRO Thunderbolt is built with creatives in mind. Unlike re-purposed IT boxes, these desktop systems are designed from the ground up for studio, on-set, and lab use, delivering years of reliable, trouble-free service. Featuring a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling fan. Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Each model comes equipped with two Thunderbolt™ 3 ports that support daisy-chaining, with one port delivering 60W of power for device charging. For additional flexibility, every unit also includes SAS Host and SAS Expansion ports, allowing you to connect other SAS devices to your Thunderbolt computer, or use the drive with a non-Thunderbolt workstation.
Every SymplyPRO Thunderbolt configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. It’s also compatible with leading backup and archive applications that support LTO—media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData; plus broader IT platforms including Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, and the open-source Bacula and Bareos.
On Windows and Linux, SymplyPRO Thunderbolt integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
Features & Benefits
- Thunderbolt™ 3 host interface with SymplyLOCK™ cable locking — dual Thunderbolt™ 3 ports with daisy-chain support (compatible with Thunderbolt 4/5 hosts), including one port providing up to 60W of device charging.
- 12Gb SAS connectivity — SAS Host and SAS Expansion ports (via Thunderbolt bridge) allow connection to non-Thunderbolt workstations and attaching additional SAS devices to a computer via Thunderbolt.
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Archiware P5, Hedge Canister, YoYotta, XenData, plus broader IT platforms and tools.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with high-quality 2m Thunderbolt cable, data and cleaning cartridges, and SymplyLOCK.
Available Models
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO Thunderbolt | Half-Height | 1 | 7, 8, 9 |
2 x TB3 |
1 x SFF-8644 |
27.5 x 21.1 x 9.2 cm (11 x 8.5 x 3.5 in) |
4.0 kg (8.8 lb) |
| PRO Thunderbolt XTH | Half-Height | 1 or 2 | 7, 8, 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.3 lb) |
| PRO Thunderbolt XTF | Full-Height | 1 | 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO Thunderbolt XTF | Full-Height | 1 | 10 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5) |
7.7 kg (17.0 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Technical Specifications
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
Ethernet
Overview
PRO Ethernet XTH (Single)
PRO Ethernet XTH (Dual)
PRO Ethernet XTF
SymplyPRO Ethernet brings tape into the virtual era by making LTO drives (and libraries) accessible across standard Ethernet (iSCSI). Multiple hosts, or guest operating systems can securely share the same tape resources without the need for costly Fibre Channel infrastructure. By leveraging existing network infrastructure, organizations can lower costs, simplify operations, and scale easily as data grows.
Key benefits include:
- Reliability & Flexibility: Shared tape access for multiple hosts, or guest OSs, live VM migration with uninterrupted tape operations.
- Scalability & Control: Expand easily, by attaching existing SAS tape devices to the SymplyPRO Ethernet Desktop and manage multiple systems from a single backup server (physical or virtual).
- Efficiency: Faster backups and restores, while eliminating Fibre Channel costs and SAS distance limitations.
SymplyPRO Ethernet brings together two 10 GbE iSCSI interfaces with a robust all-metal design that’s simple to use, and low cost per TB storage capacity. Every enclosure integrates a premium PSU and efficient cooling. Choose from a dual-drive XTH desktop with one or two half-height LTO-7, LTO-8 or LTO-9, or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO Ethernet configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO Ethernet is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO Ethernet integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
Features & Benefits
- Virtualize tape drive resources – cost-effectively allow multiple hosts, or guest operating systems can securely share the same tape devices.
-
-
- Simplified connectivity using existing Ethernet infrastructure.
- Lower total cost of ownership with fewer specialized components.
- Flexible library placement unconstrained by SAS or Fibre Channel cabling.
- Easy scalability with additional iSCSI bridges or libraries.
- Support for both physical and virtual deployments.
-
-
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, Bareos, and XenData.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Included cartridges — ships with data cartridges and cleaning cartridges as standard.
Available Models
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO Ethernet XTH | Half-Height | 1 or 2 | 7, 8, 9 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.4 lb) |
| PRO Ethernet XTF | Full-Height | 1 | 9 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
6.4 kg (14.1 lb) |
| PRO Ethernet XTF | Full-Height | 1 | 10 |
2 x 10GbE iSCSI |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5 in) |
7.8 kg (17.2 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Technical Specifications
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
SAS
Overview
PRO SAS
PRO SAS XTH (Single)
PRO SAS XTH (Dual)
PRO SAS XTF
SymplyPRO SAS brings that reliability together with a compact, robust all-metal design that’s simple, affordable and energy-efficient. Every enclosure integrates a premium PSU and cooling. Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktop models use our SymplyCABLELESS™ architecture for fast serviceability and easy upgrades.
Every SymplyPRO SAS configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. In addition, SymplyPRO SAS is compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, Bacula, Bareos, and media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData.
On Windows and Linux, SymplyPRO SAS integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in any environment.
Features & Benefits
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Veeam, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Archiware P5, Retrospect, Hedge Canister, YoYotta, Bacula, and Bareos.
- Security & compliance built-in — AES-256 hardware encryption (app-managed keys) and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with a high-quality 2m SAS cable, plus data and cleaning cartridges.
Available Models
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | D x W x H | Weight |
|
PRO SAS |
Half-Height | 1 | 7, 8 |
1 x SFF-8088* |
26.3 x 21.1 x 6.3 cm |
2.9 kg (6.3 lb) |
| PRO SAS | Half-Height | 1 | 9 |
1 x SFF-8644 |
26.3 x 21.1 x 6.3 cm |
2.9 kg (6.3 lb) |
|
PRO SAS XTH |
Half-Height | 1 or 2 | 7, 8, 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm |
5.6 kg (12.3 lb) |
|
PRO SAS XTF |
Full-Height | 1 | 9 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO SAS XTF | Full-Height | 1 | 10 |
1 x SFF-8644 |
30 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
7.7 kg (17.0 lb) |
* SFF-8644 version available.
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Technical Specifications
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
DIT Thunderbolt
Overview
PRO DIT Thunderbolt
PRO DIT Thunderbolt XTH (Single)
PRO DIT Thunderbolt XTH (Dual)
PRO DIT Thunderbolt XTF
Purpose-built for DIT applications, SymplyPRO DIT Thunderbolt LTO is a full-featured backup, archive and transfer system designed specifically for on-set and DIT data protection, with features that enhance every production and post-production pipeline.
SymplyPRO DIT Thunderbolt is based on our advanced SymplyPRO desktop line—rugged metal-alloy enclosure, premium power supply and efficient cooling—then adds multi-access ingest: a front dock for any 2.5-inch SSD or Atomos Master Caddy to enable fast, all-in-one DIT operations (ingest → verify → to-tape). Choose single-drive desktops with half-height LTO-7, LTO-8 or LTO-9; XTH with dual half-height drives; or XTF with a single full-height LTO-9 or LTO-10 drive. All dual-drive desktops use our SymplyCABLELESS™ architecture for rapid serviceability and easy upgrades.
Each model comes equipped with two Thunderbolt™ 3 ports that support daisy-chaining, with one port delivering 60W of power for device charging. For additional flexibility, every unit also includes SAS Host and SAS Expansion ports, allowing you to connect other SAS devices to your Thunderbolt computer, or use the drive with a non-Thunderbolt workstation.
Every SymplyPRO DIT Thunderbolt configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. It’s also compatible with leading backup and archive applications that support LTO— media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData; plus broader IT platforms including Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, and the open-source Bacula, and Bareos.
On Windows and Linux, SymplyPRO DIT Thunderbolt integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM™ provides streamlined tape operations—format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.
Features & Benefits
- Two 2.5” SATA SSD reader bays — supports < 9 mm drives and bridges SATA SSDs to Thunderbolt.
- Thunderbolt™ 3 host interface with SymplyLOCK™ cable locking — dual Thunderbolt™ 3 ports with daisy-chain support (compatible with Thunderbolt 4/5 hosts), including one port providing up to 60W of device charging.
- 12Gb SAS connectivity — SAS Host and SAS Expansion ports (via Thunderbolt bridge) allow connection to non-Thunderbolt workstations and attaching additional SAS devices to a computer via Thunderbolt.
- Desktop configuration — available with LTO-7, LTO-8, or LTO-9 half-height and LTO-9 and LTO-10 full-height tape drives.
- Half-Height Drive capacity & speed — up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput.
- Full-Height Drive capacity & speed — up to 40 TB raw / 100 TB compressed (LTO-10) per cartridge; up to 400 MB/s native. throughput.
- LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
- Compatible with leading software — Archiware P5, Hedge Canister, YoYotta, XenData, plus broader IT platforms and tools.
- Security & compliance built-in — AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention.
- Air-gapped by design — enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience.
- Advanced all-metal enclosure — compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms.
- Physical security — Kensington T-Bar™ lock slot.
- Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
- Warranty — 3-Year Advanced Replacement (optional +2-Year extension).
- Premium Packaging — every model comes with high-quality 2m Thunderbolt cable, data and cleaning cartridges, and SymplyLOCK.
Available Models
| Product Name | Form-Factor | No. Drives | LTO Gen | Host Interface | Expansion Interface | D x W x H | Weight |
| PRO DIT Thunderbolt | Half-Height | 1 | 7, 8, 9 |
2 x TB3 |
1 x SFF-8644 |
27.5 x 21.1 x 9.2 cm (11 x 8.5 x 3.5 in) |
4.0 kg (8.8 lb) |
| PRO DIT Thunderbolt XTH | Half-Height | 1 or 2 | 7, 8, 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.6 kg (12.3 lb) |
| PRO DIT Thunderbolt XTF | Full-Height | 1 | 9 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
30.0 x 21.1 x 13.6 cm (12 x 8.5 x 5.5 in) |
5.8 kg (12.7 lb) |
| PRO DIT Thunderbolt XTF | Full-Height | 1 | 10 | 2 x TB3 1 x SFF-8644 |
1 x SFF-8644 |
38.2 x 22.1 x 14.0 cm (15.0 x 8.3 x 5.5) |
7.7 kg (17.0 lb) |
Questions about available models? Contact us, and our team of experts will help you find the right solution for your workflow.
Technical Specifications
Performance & Capacity
| Drive Type | Media Type | Performance Native (Compressed) | Capacity Native (Compressed) |
| LTO-10 Full Height | LTO-10 Enterprise (Aramid) |
400 MB/Sec (1000 MB/Sec) |
40 TB (100 TB) |
| LTO-10 Full Height | LTO-10 |
400 MB/Sec (1000 MB/Sec) |
30 TB (75 TB) |
| LTO-9 Full Height | LTO-9 |
400 MB/Sec (1000 MB/Sec) |
18 TB (45 TB) |
| LTO-9 Full Height | LTO-8 |
360 MB/Sec (900 MB/Sec) |
12 TB (30 TB) |
| LTO-9 Half Height | LTO-9 |
300 MB/Sec (750 MB/Sec) |
12 TB (30 TB) |
| LTO-8 Half Height | LTO-8 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
| LTO-7 Half Height | LTO-7 |
300 MB/Sec (750 MB/Sec) |
6 TB (15 TB) |
** Assumes 2.5:1 compression ratio.
Reliability
| Drive Type |
MTBF (Hours) |
MSBF (Mean Swaps Before Failure) |
Load / Unload Cycles |
|
Full-Height |
250,000 @ 100% Duty Cycle |
100,000 |
300,000 |
|
Half-Height |
250,000 @ 100% Duty Cycle |
100,000 |
80,000 |
Environmental Specifications
|
Environmental Factor |
Recommended1 |
Allowable2 |
Non-Operating |
|
Dry-Bulb Temperature |
LTO-9 and LTO-10: 15 to 25 °C |
LTO-9 and LTO-10: 15 to 30 °C
LTO-7 and LTO-8: 16 to 35 °C |
5 to 35˚C (41 to 95˚F) |
|
Relative Humidity |
20 to 50% (non-condensing) |
20 to 80% (non-condensing) |
20 to 80% (non-condensing) |
|
Maximum Temperature Change |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
5 °C (41 °F) / hour |
|
Maximum Humidity Change |
5% / hour |
5% / hour |
5% / hour |
|
Temperature Limitation for Humidity Conditions |
LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F) |
||
|
Maximum Altitude |
3,048 m (10,000 ft) |
3,048 m (10,000 ft) |
12,192 m (40,000 ft) |
|
Dust concentration |
Less than 200 microgram / cubic meter |
||
Storage & Shipping
| Condition |
Environmental Specification |
|
Short-term storage conditions |
See operating conditions |
|
Long-term storage conditions |
See operating conditions |
|
Shipping conditions3 |
5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing. |
1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.
Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.
SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS™ technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds—without ever powering down the system. Upgrading to the next LTO generation is just as simple.
In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime—exactly what you’d expect from Symply.
|
|
Installing an additional drive |
