LTO tape is the gold standard for backup and archival storage, trusted across media, healthcare, finance, education, and SMBs/SMEs. With industry-leading capacity and the lowest cost per terabyte, LTO provides a reliable, long-term solution for protecting large volumes of data.

Built for modern data protection, LTO supports the 3-2-1-1 strategy—three copies of data on two media types, with one copy off-site and one offline—delivering an affordable layer of protection against ransomware and data loss. Security and compliance are built in with WORM media and AES-256 hardware encryption to ensure data integrity and protection at rest.

Below, explore the full range of SymplyPRO XTL Tape Libraries, designed to scale from compact, entry-level deployments to high-capacity enterprise environments. Available in 1U, 2U, 3U, and 6U form factors, with capacities ranging from 8 to 80 cartridge slots, these libraries integrate seamlessly into existing backup and archive workflows. Choose the connectivity that fits your infrastructure, with support for SAS, Fibre Channel, Ethernet, and Thunderbolt, alongside compatibility with LTO-7, LTO-8, LTO-9, and LTO-10 drives.

New to LTO? Click here and learn how the 3-2-1-1 strategy works, why LTO is essential for data-heavy workflows, and how it can dramatically reduce your long-term storage costs.

SymplyPRO XTL Usage Modules

Media & Entertainment  Oil & Gas  Government & Military
Education  Information Technology  Medical Imaging
Finance   Surveillance  Data Centres for Cloud Services

SymplyPRO XTL Libraries

Data Sheet

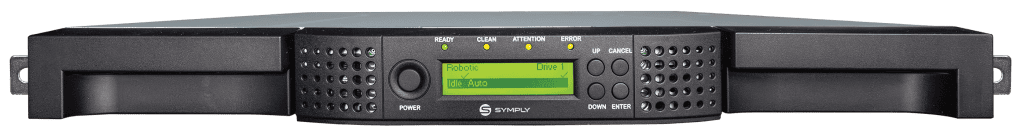

1U 8-Slot LTO Library for Reliable Data Protection

SymplyPRO XTL 8 is a compact 1U entry-level library is designed for reliable data protection, featuring support for current LTO generations, including LTO-7, LTO-8 and LTO-9 half-height tape drives. The XTL 8 is idea for SMBs, quick to deploy, simple to run, providing an impressive balance between capacity and total cost of ownership. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via external bridge interface —and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 8 delivers a small library that is straightforward to operate.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Right-sized automation — small 1U library with 8 slots delivers true unattended backup/archiving without the footprint of larger libraries.
  • Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — all 8 slots are active with one or two drives, are included with the purchase.
  • Total capacity — delivers up to 144 TB uncompressed using LTO-9 technology, or up to 96 TB with LTO-8.
  • Choice of drives — supports 1 half-height LTO-8 or LTO-9 drives (note: optional iSCSI or Thunderbolt™ 3 sled operates in bridge mode and does not support tape drives).
  • Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.
  • Security & compliance built-in — AES hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
  • Warranty — includes a 3-year warranty and industry-leading support.

Rack Units

1U

Number of Tape Slots

8

Number of Half-Height Tape Drives

1

Mail Slots (Import/Export)

1

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

1,000,000

Power

Single PSU – AC 100-240V



Dimensions

Height

44 mm (1.73 in)

Width

482 mm (18.97 in)

Depth

806 mm (31.73 in)

Weight (No Tape Drives)

11 Kg (24 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

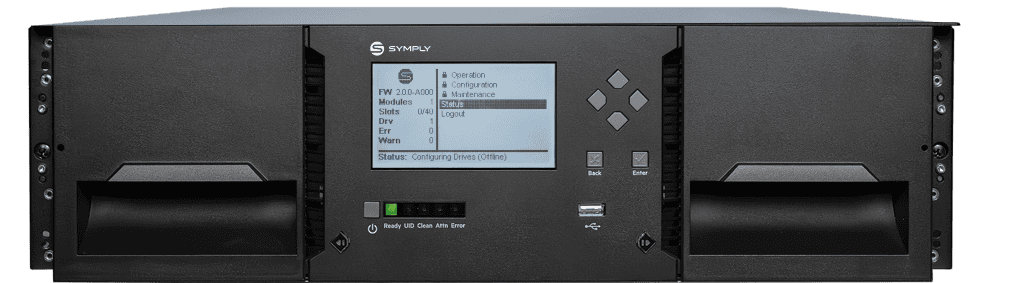

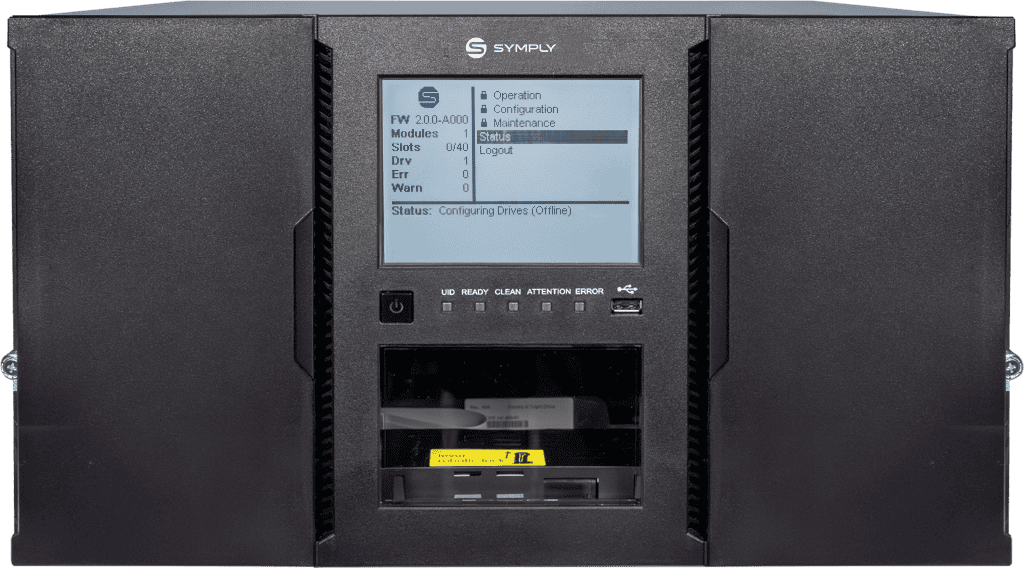

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Data Sheet

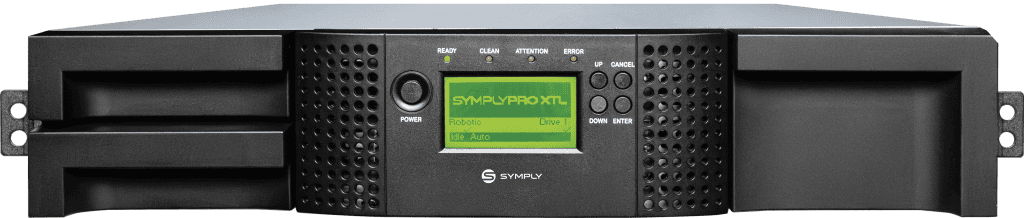

2U 24-Slot LTO Library in a Compact Design

SymplyPRO XTL 24 brings that assurance to SMBs, departments, and remote sites in a compact 2U / 24-slot form factor that’s quick to deploy, offers the most comprehensive connectivity in the industry, is simple to run—even for unattended, overnight jobs. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via host interface module—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and ndustry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 24 delivers a library that is straightforward to operate.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Right-sized automation — 2U library with 24 slots delivers true unattended backup/archiving without the footprint of larger libraries.
  • Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — all 24 slots are active with one or two drives, are included with the purchase.
  • Total capacity — delivers up to 432 TB uncompressed using LTO-9 technology, or up to 288 TB with LTO-8.
  • Choice of drives — supports 1 or 2 half-height LTO-8 or LTO-9 drives. (note: optional iSCSI or Thunderbolt™ 3 sled limits to one drive).
  • Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
  • Logical library support — enables two logical libraries when two tape drives are installed.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
  • Warranty — includes a 3-year warranty and industry-leading support.

Rack Units

2U

Number of Tape Slots

24

Number of Half-Height Tape Drives

1 or 2

Mail Slots (Import/Export)

1

Number of Magazines

2

Max Partitions

2

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

1,000,000

Power

Single PSU – AC 100-240V, 3,5 / 1,5A, 50-60Hz



Dimensions

Height

87 mm (3.42 in)

Width

482 mm (18.97 in)

Depth

806 mm (31.73 in)

Weight (No Tape Drives)

15 Kg (34 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Data Sheet

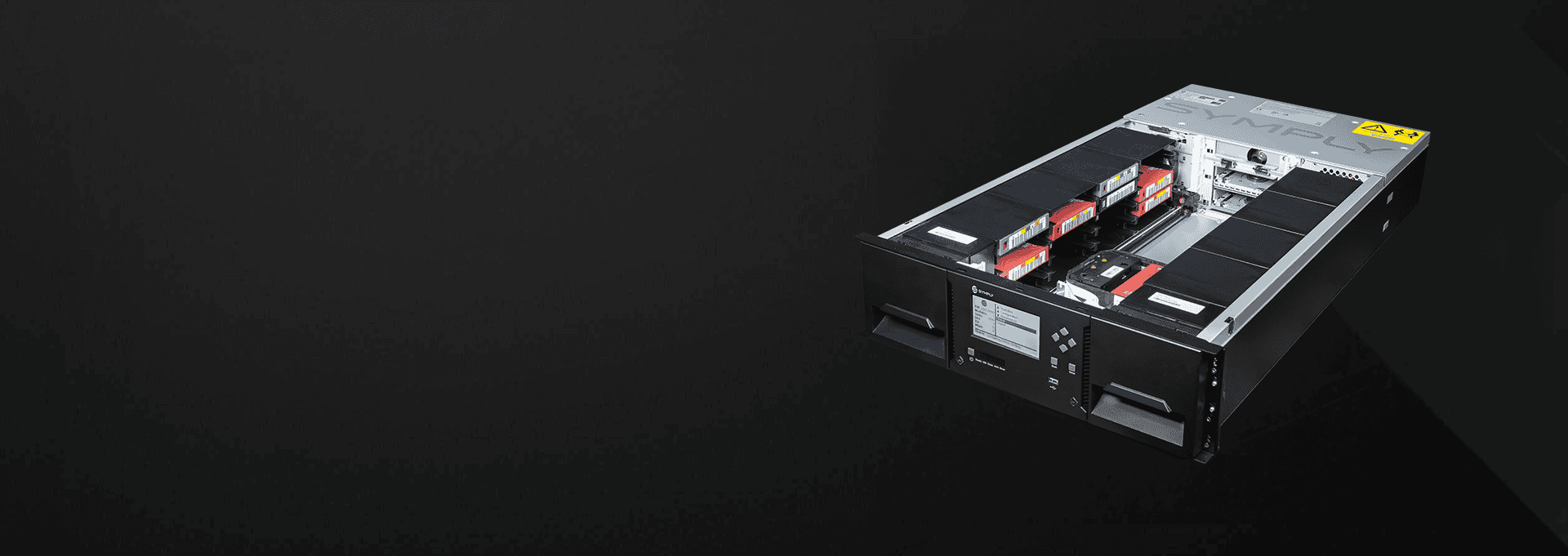

3U Modular LTO Library — 40 Slots, Scalable Architecture

Built on proven architecture, ready for your stack. The SymplyPRO XTL 40 brings that advantage into a compact, 3U, 40-slot library designed for easy integration and everyday reliability. Choose the host connectivity that fits your infrastructure, 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3, and slot it straight into existing backup and archive workflows. A clear front-panel interface speeds local setup, while secure, browser-based remote management lets you monitor status, update firmware, move media, run diagnostics and export reports from anywhere.

Modular by design, without licensing traps. Start small and scale as you grow: the XTL 40 expands to 640 slots in a standard 48U rack simply by adding modules—no special alignment rigs, and no capacity-on-demand or partitioning licences to unlock what you already own. Each 3U module supports up to three half-height drives or one full-height drive, so performance can grow alongside capacity. Configure with LTO-7/8/9 (half-height) or LTO-9/10 (full-height), and choose single or redundant PSU options to match your availability requirements.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robot. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote updates for both library and drives, and industry-leading support and a 3-year warranty as standard. SymplyPRO XTL 40 delivers a library that is as straightforward to run as it is powerful to scale.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Modular scalability — start at 3U / 40 slots and expand seamlessly to 640 slots within a standard 48U rack.
  • Flexible connectivity — choose from 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — scale slots and drives as needed with no capacity-on-demand or partitioning licences required.
  • Total capacity — up to 1.6 PB raw per module, scaling to 25.6 PB raw per library with LTO-10 enterprise/aramid media (40 → 640 slots).
  • Choice of drives — supports up to x3 half-height (LTO-7/8/9) or 1x full-height (LTO-9/10) drive per module.
  • Mixed drive support — compatible with combinations of half-height and full-height drives.
  • Operations at a glance — 4-inch front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • Symply Magazine Transport Case — a military-grade transport case for XTL-40 magazines, supports safe, secure movement from rack to vault.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • PSU options — single PSU standard; redundant PSU configurations available.
  • Power-efficient expansion — media-only expansion modules include no power supplies, reducing overall energy usage.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — enables fast and safe bulk loading and unloading of media
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 2,000,000 MSBF (robotic picks).
  • Simple expansion — easy module add-on with no special alignment required.
  • Warranty — includes a 3-year warranty and industry-leading support.

3U Per Module

48U Total

Max Configuration

Base Module + 15 Expansion Modules

Number of Tape Slots

40 Per Module

460 Total

Number of Half-Height Tape Drives

3 Per Module

48 Total

Number of Full-Height Tape Drives

1 Per Module

16 Total

Mail Slots (Import/Export)

5 Per Module

80 Total

Number of Magazines

2 Per Module

32 Total

Max Partitions

Maximum 20 (dynamically configurable)

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-7

6 Gb SFF-8088

8 Gb LC
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC
LTO-10

12 Gb SFF-8644

32 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

2,000,000

Power Connection

AC 100-240V, 3,5 / 1,5A, 50-60Hz

Number of Power Supplies (80 PLUS Gold Standard)

1 or 2 Per Module (Up to 32 Total)

Power Consumption

ca. 170W with 3 drives (based on half-height drives)



Dimensions

Height

133 mm (5.25 in)

Width

482 mm (18.98 in)

Depth

873 mm (34.37 in)

Weight (No Tape Drives)

25.1 Kg (90.38 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Data Sheet

6U 80-Slot Modular LTO Library Built for Enterprise Scalability

Built on proven architecture, ready for your enterprise stack. The SymplyPRO XTL 80 brings that advantage into a compact, 6U, 80-slot library designed for easy integration and everyday reliability. Choose the host connectivity that fits your infrastructure, 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3, and slot it straight into existing backup and archive workflows. A clear front-panel interface speeds local setup, while secure, browser-based remote management lets you monitor status, update firmware, move media, run diagnostics and export reports from anywhere.

Modular by design, without licensing traps. Start small and scale as you grow: the XTL 80 expands to 560 slots in a standard 42U rack simply by adding modules—no special alignment rigs, and no capacity-on-demand or partitioning licences to unlock what you already own. Each 6U module supports up to six half-height drives or three full-height drives, so performance can grow alongside capacity. Configuration options: Half-height LTO-7/8/9, Full-height LTO-9/10, or a combination of both.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 80 delivers a library that is as straightforward to operate as it is powerful to scale.

Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data.  Compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Enterprise modular scalability and reliability — start at 6U / 80 slots and expand to 560 slots in a standard 42U rack.
  • Flexible connectivity — choose from 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — scale slots and drives as needed with no capacity-on-demand or partitioning licences required.
  • Total capacity — up to 3.2 PB raw per module, scaling to 22.4 PB raw per library with LTO-10 enterprise/aramid media (80 → 560 slots).
  • Choice of drives — supports up to 6x half-height (LTO-7/8/9, max 42x half-height in 42U) or 3x full-height (LTO-9/10, max 21x full-height in 42U) drive per module.
  • Mixed drive support — compatible with combinations of half-height and full-height drives.
  • Operations at a glance — 5.7-inch front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • PSU configuration — redundant PSU configurations as standard.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — enables fast and safe bulk loading and unloading of media.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 3,000,000 MSBF (robotic picks).
  • Simple expansion — easy module add-on with no special alignment required.
  • Warranty — includes a 3-year warranty and industry-leading

6U Per Module

42U Total

Max Configuration

Base Module + 6 Expansion Modules

Number of Tape Slots

80 Per Module

560 Total

Number of Half-Height Tape Drives

6 Per Module

42 Total

Number of Full-Height Tape Drives

6 Per Module

21 Total

Mail Slots (Import/Export)

10 Per Module

70 Total

Number of Magazines

2 Per Module

32 Total

Max Partitions

Maximum 20 (dynamically configurable)

Contact us, and our team of experts will help you find the right solution for your workflow.

Interface

Native Interface SAS Fibre Channel
LTO-7

6 Gb SFF-8088

8 Gb LC
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC
LTO-10

12 Gb SFF-8644

32 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

3,000,000

Power Connection

100 – 240 VAC / 300W

Number of Power Supplies (80 PLUS Gold Standard)

2 Per Module (Up to 14 Total)



Dimensions

Height

268 mm (10.55 in)

Width

482 mm (18.98 in)

Depth

895 mm (35.23 in)

Weight (No Tape Drives)

41 Kg (90.38 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years

SymplyPRO XTL Libraries

Technical Specs

1U 8-Slot LTO Library for Reliable Data Protection

SymplyPRO XTL 8 is a compact 1U entry-level library is designed for reliable data protection, featuring support for current LTO generations, including LTO-7, LTO-8 and LTO-9 half-height tape drives. The XTL 8 is idea for SMBs, quick to deploy, simple to run, providing an impressive balance between capacity and total cost of ownership. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via external bridge interface —and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 8 delivers a small library that is straightforward to operate.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Right-sized automation — small 1U library with 8 slots delivers true unattended backup/archiving without the footprint of larger libraries.
  • Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — all 8 slots are active with one or two drives, are included with the purchase.
  • Total capacity — delivers up to 144 TB uncompressed using LTO-9 technology, or up to 96 TB with LTO-8.
  • Choice of drives — supports 1 half-height LTO-8 or LTO-9 drives (note: optional iSCSI or Thunderbolt™ 3 sled operates in bridge mode and does not support tape drives).
  • Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.
  • Security & compliance built-in — AES hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
  • Warranty — includes a 3-year warranty and industry-leading support.

Rack Units

1U

Number of Tape Slots

8

Number of Half-Height Tape Drives

1

Mail Slots (Import/Export)

1

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

1,000,000

Power

Single PSU – AC 100-240V



Dimensions

Height

44 mm (1.73 in)

Width

482 mm (18.97 in)

Depth

806 mm (31.73 in)

Weight (No Tape Drives)

11 Kg (24 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Technical Specs

2U 24-Slot LTO Library in a Compact Design

SymplyPRO XTL 24 brings that assurance to SMBs, departments, and remote sites in a compact 2U / 24-slot form factor that’s quick to deploy, offers the most comprehensive connectivity in the industry, is simple to run—even for unattended, overnight jobs. Choose the host connectivity that fits your infrastructure—6 Gb/12 Gb SAS (by generation), 8 Gb Fibre Channel, or optional 10 GbE iSCSI / Thunderbolt 3 via host interface module—and drop into existing backup and archive workflows. The clear front-panel LCD speeds local setup, while the browser-based UI makes it easy to monitor, move media, run diagnostics, and update firmware from anywhere.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and ndustry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 24 delivers a library that is straightforward to operate.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Right-sized automation — 2U library with 24 slots delivers true unattended backup/archiving without the footprint of larger libraries.
  • Flexible connectivity — choose from 6/12 Gb SAS, 8 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — all 24 slots are active with one or two drives, are included with the purchase.
  • Total capacity — delivers up to 432 TB uncompressed using LTO-9 technology, or up to 288 TB with LTO-8.
  • Choice of drives — supports 1 or 2 half-height LTO-8 or LTO-9 drives. (note: optional iSCSI or Thunderbolt™ 3 sled limits to one drive).
  • Operations at a glance — front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — two removable magazines enable fast and safe bulk loading and unloading of media.
  • Logical library support — enables two logical libraries when two tape drives are installed.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 1,000,000 MSBF (robotic picks).
  • Warranty — includes a 3-year warranty and industry-leading support.

Rack Units

2U

Number of Tape Slots

24

Number of Half-Height Tape Drives

1 or 2

Mail Slots (Import/Export)

1

Number of Magazines

2

Max Partitions

2

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

1,000,000

Power

Single PSU – AC 100-240V, 3,5 / 1,5A, 50-60Hz



Dimensions

Height

87 mm (3.42 in)

Width

482 mm (18.97 in)

Depth

806 mm (31.73 in)

Weight (No Tape Drives)

15 Kg (34 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Technical Specs

3U Modular LTO Library — 40 Slots, Scalable Architecture

Built on proven architecture, ready for your stack. The SymplyPRO XTL 40 brings that advantage into a compact, 3U, 40-slot library designed for easy integration and everyday reliability. Choose the host connectivity that fits your infrastructure, 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3, and slot it straight into existing backup and archive workflows. A clear front-panel interface speeds local setup, while secure, browser-based remote management lets you monitor status, update firmware, move media, run diagnostics and export reports from anywhere.

Modular by design, without licensing traps. Start small and scale as you grow: the XTL 40 expands to 640 slots in a standard 48U rack simply by adding modules—no special alignment rigs, and no capacity-on-demand or partitioning licences to unlock what you already own. Each 3U module supports up to three half-height drives or one full-height drive, so performance can grow alongside capacity. Configure with LTO-7/8/9 (half-height) or LTO-9/10 (full-height), and choose single or redundant PSU options to match your availability requirements.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robot. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote updates for both library and drives, and industry-leading support and a 3-year warranty as standard. SymplyPRO XTL 40 delivers a library that is as straightforward to run as it is powerful to scale.

Full support for LTFS ensuring simple, cross-platform interchange when you need to hand off projects or vault data. Compatible with leading backup and archive applications that support LTO — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Modular scalability — start at 3U / 40 slots and expand seamlessly to 640 slots within a standard 48U rack.
  • Flexible connectivity — choose from 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — scale slots and drives as needed with no capacity-on-demand or partitioning licences required.
  • Total capacity — up to 1.6 PB raw per module, scaling to 25.6 PB raw per library with LTO-10 enterprise/aramid media (40 → 640 slots).
  • Choice of drives — supports up to x3 half-height (LTO-7/8/9) or 1x full-height (LTO-9/10) drive per module.
  • Mixed drive support — compatible with combinations of half-height and full-height drives.
  • Operations at a glance — 4-inch front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports.
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • Symply Magazine Transport Case — a military-grade transport case for XTL-40 magazines, supports safe, secure movement from rack to vault.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • PSU options — single PSU standard; redundant PSU configurations available.
  • Power-efficient expansion — media-only expansion modules include no power supplies, reducing overall energy usage.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — enables fast and safe bulk loading and unloading of media
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 2,000,000 MSBF (robotic picks).
  • Simple expansion — easy module add-on with no special alignment required.
  • Warranty — includes a 3-year warranty and industry-leading support.

3U Per Module

48U Total

Max Configuration

Base Module + 15 Expansion Modules

Number of Tape Slots

40 Per Module

460 Total

Number of Half-Height Tape Drives

3 Per Module

48 Total

Number of Full-Height Tape Drives

1 Per Module

16 Total

Mail Slots (Import/Export)

5 Per Module

80 Total

Number of Magazines

2 Per Module

32 Total

Max Partitions

Maximum 20 (dynamically configurable)

Contact us, and our team of experts will help you find the right solution for your workflow.



Interface

Native Interface SAS Fibre Channel
LTO-7

6 Gb SFF-8088

8 Gb LC
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC
LTO-10

12 Gb SFF-8644

32 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

2,000,000

Power Connection

AC 100-240V, 3,5 / 1,5A, 50-60Hz

Number of Power Supplies (80 PLUS Gold Standard)

1 or 2 Per Module (Up to 32 Total)

Power Consumption

ca. 170W with 3 drives (based on half-height drives)



Dimensions

Height

133 mm (5.25 in)

Width

482 mm (18.98 in)

Depth

873 mm (34.37 in)

Weight (No Tape Drives)

25.1 Kg (90.38 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Technical Specs

6U 80-Slot Modular LTO Library Built for Enterprise Scalability

Built on proven architecture, ready for your enterprise stack. The SymplyPRO XTL 80 brings that advantage into a compact, 6U, 80-slot library designed for easy integration and everyday reliability. Choose the host connectivity that fits your infrastructure, 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3, and slot it straight into existing backup and archive workflows. A clear front-panel interface speeds local setup, while secure, browser-based remote management lets you monitor status, update firmware, move media, run diagnostics and export reports from anywhere.

Modular by design, without licensing traps. Start small and scale as you grow: the XTL 80 expands to 560 slots in a standard 42U rack simply by adding modules—no special alignment rigs, and no capacity-on-demand or partitioning licences to unlock what you already own. Each 6U module supports up to six half-height drives or three full-height drives, so performance can grow alongside capacity. Configuration options: Half-height LTO-7/8/9, Full-height LTO-9/10, or a combination of both.

Engineered for operations — removable magazines make bulk import/export fast and safe; easy serviceability of power supplies, tape drives, controllers, and robotics. Front-to-back airflow fits hot-aisle/cold-aisle layouts. Encryption and LTO WORM media support help enforce retention and governance policies. With field-proven mechanics, remote firmware updates for both the library and drives, and industry-leading support backed by a 3-year warranty as standard, SymplyPRO XTL 80 delivers a library that is as straightforward to operate as it is powerful to scale.

Full support for LTFS ensures simple, cross-platform interchange when you need to hand off projects or vault data.  Compatible with leading backup and archive applications that support LTO —Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData.

  • Enterprise modular scalability and reliability — start at 6U / 80 slots and expand to 560 slots in a standard 42U rack.
  • Flexible connectivity — choose from 12 Gb SAS, 8/32 Gb Fibre Channel, 10 GbE iSCSI, or Thunderbolt™ 3 to fit your infrastructure.
  • No restrictive licences — scale slots and drives as needed with no capacity-on-demand or partitioning licences required.
  • Total capacity — up to 3.2 PB raw per module, scaling to 22.4 PB raw per library with LTO-10 enterprise/aramid media (80 → 560 slots).
  • Choice of drives — supports up to 6x half-height (LTO-7/8/9, max 42x half-height in 42U) or 3x full-height (LTO-9/10, max 21x full-height in 42U) drive per module.
  • Mixed drive support — compatible with combinations of half-height and full-height drives.
  • Operations at a glance — 5.7-inch front-panel display on the base unit plus secure web-based management with email/SNMP alerts and exportable inventory/health reports
  • Serviceability — user-serviceable components, plus remote and USB-based firmware updates.
  • LTFS drag-and-drop — mount tapes like a removable drive for simple copy/move and interchange without heavy backup software.
  • Compatible with leading software — Veeam Backup & Replication, Veritas NetBackup, Commvault, Qstar, Arcserve, Retrospect, Bacula, and media-focused tools such as Archiware P5, Hedge Canister, Tiger Bridge, YoYotta, and XenData
  • Security & compliance built-in — AES-256 hardware encryption and LTO WORM media supportor non-erasable, non-rewritable retention.
  • Air-gapped by design — removable magazines and standard operating procedures make it simple to maintain an air-gapped copy aligned to the 3-2-1-1-0 best practice.
  • Operational control — password-protected, browser-based management for authorised administrators; clear audit trails via event logs.
  • PSU configuration — redundant PSU configurations as standard.
  • Remote management — secure browser-based control over Ethernet with a mobile-friendly UI.
  • Removable magazines — enables fast and safe bulk loading and unloading of media.
  • Rack configuration — ball-bearing slides included for smooth installation and service access.
  • Compliance & certifications — CE, UKCA, FCC Class A; RoHS.
  • Robotics — engineered for reliability with up to 3,000,000 MSBF (robotic picks).
  • Simple expansion — easy module add-on with no special alignment required.
  • Warranty — includes a 3-year warranty and industry-leading

6U Per Module

42U Total

Max Configuration

Base Module + 6 Expansion Modules

Number of Tape Slots

80 Per Module

560 Total

Number of Half-Height Tape Drives

6 Per Module

42 Total

Number of Full-Height Tape Drives

6 Per Module

21 Total

Mail Slots (Import/Export)

10 Per Module

70 Total

Number of Magazines

2 Per Module

32 Total

Max Partitions

Maximum 20 (dynamically configurable)

Contact us, and our team of experts will help you find the right solution for your workflow.

Interface

Native Interface SAS Fibre Channel
LTO-7

6 Gb SFF-8088

8 Gb LC
LTO-8

6 Gb SFF-8088

8 Gb LC
LTO-9

12 Gb SFF-8644

8 Gb LC
LTO-10

12 Gb SFF-8644

32 Gb LC

Optional Interface (via Integrated Bridge) — 10GbE Ethernet or Thunderbolt 3

System Power & Reliability

Robotic MSBF

3,000,000

Power Connection

100 – 240 VAC / 300W

Number of Power Supplies (80 PLUS Gold Standard)

2 Per Module (Up to 14 Total)



Dimensions

Height

268 mm (10.55 in)

Width

482 mm (18.98 in)

Depth

895 mm (35.23 in)

Weight (No Tape Drives)

41 Kg (90.38 lb)



Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-10 Full Height LTO-10 Enterprise (Aramid)

400 MB/Sec (1000 MB/Sec)

40 TB (100 TB)
LTO-10 Full Height LTO-10

400 MB/Sec (1000 MB/Sec)

30 TB (75 TB)
LTO-9 Full Height LTO-9

400 MB/Sec (1000 MB/Sec)

18 TB (45 TB)
LTO-9 Full Height LTO-8

360 MB/Sec (900 MB/Sec)

12 TB (30 TB)
LTO-9 Half Height LTO-9

300 MB/Sec (750 MB/Sec)

12 TB (30 TB)
LTO-8 Half Height LTO-8

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)
LTO-7 Half Height LTO-7

300 MB/Sec (750 MB/Sec)

6 TB (15 TB)

** Assumes 2.5:1 compression ratio.



Reliability

Drive Type

MTBF (Hours)

MSBF (Mean Swaps Before Failure)

Load / Unload Cycles

Full-Height

250,000 @ 100% Duty Cycle

100,000

300,000

Half-Height

250,000 @ 100% Duty Cycle

100,000

80,000



Environmental Specifications

Environmental Factor

Recommended1

Allowable2

Non-Operating

Dry-Bulb Temperature

LTO-9 and LTO-10: 15 to 25 °C
(59 to 77 °F)

LTO-7 and LTO-8: 16 to 25 °C
(61 to 77 °F)

LTO-9 and LTO-10: 15 to 30 °C
(59 to 86 °F)



LTO-7 and LTO-8: 16 to 35 °C
(61 to 95 °F)

5 to 35˚C (41 to 95˚F)

Relative Humidity

20 to 50% (non-condensing)

20 to 80% (non-condensing)

20 to 80% (non-condensing)

Maximum Temperature Change

5 °C (41 °F) / hour

5 °C (41 °F) / hour

5 °C (41 °F) / hour

Maximum Humidity Change

5% / hour

5% / hour

5% / hour

Temperature Limitation for Humidity Conditions

LTO-9 and LTO-10: Max Dew Point 22 °C (72 °F)
LTO-7 and LTO-8: Wet Bulb Temperature <= 26 °C (79 °F)

Maximum Altitude

3,048 m (10,000 ft)

3,048 m (10,000 ft)

12,192 m (40,000 ft)

Dust concentration

Less than 200 microgram / cubic meter



Storage & Shipping

Condition

Environmental Specification

Short-term storage conditions

See operating conditions

Long-term storage conditions

See operating conditions

Shipping conditions3

5 to 45 °C (41 to 113 °F); 10% to 80% non-condensing.
RH; 26 °C (72 °F) dew point maximum

1 Recommended: The recommended operational/storage environmental envelope provides guidance on the environmental range for optimal performance and high reliability. This environmental range protects for 30-year archival storage.
2 Allowable: The allowable operational/storage environmental envelope defines the test limits to verify that the equipment will function within the environmental envelope. This environmental range is defined for operational storage of less than 6 months.
3 Shipping: When shipping media over extended environmental ranges, shipping times should be limited to minimize the duration of media being exposed to varying environmental conditions at lower and upper ranges. LTO tape media specifications provided by the LTO program at www.lto.org or specifications provided by the media manufacturer.

Note: The prolonged exposure to conditions outside the recommended range, especially approaching the extremes of the allowable operating environment, can result in decreased equipment reliability and longevity. An occasional short-term excursion into the allowable envelope is generally acceptable but may result in performance and reliability implications and higher power consumption.

XTL 8 XTL 24 XTL 40 XTL 80
LTO Drive Supported LTO-7, 8, 9 LTO-7, 8, 9 LTO-7, 8, 9, 10 LTO-7, 8, 9, 10
Rack Units 1U 2U 3U 6U
Number of Tape Slots  8 24 40 (460 total max)  80 (560 total max)
Number of Half Height Drives  1 2 3 (48 total max) 6 (42 total max)
Number of Full Height Drives  n/a n/a 1 (16 total max) 6 (21 total max)

Mail Slots (Import/Export)

 1 2 5 (80 total max) 10 (70 total max)
Number of Magazines 2 2 2 (32 total max) 2 (32 total max)
Number of Expansion Modules n/a n/a 15 6
Redundant Power Supplies n/a n/a Optional Included
SAS Interface
FC Interface
10GbE iSCSI Interface /
Thunderbolt 3 Interface   /
Rack Mount Kit
Barcode Reader
Height

44 mm (1.73 in)

87 mm (3.42 in)

133 mm (5.25 in)

 268 mm (10.55 in)
Width

482 mm (18.97 in)

482 mm (18.97 in)

482 mm (18.98 in)

482 mm (18.98 in)
Depth

806 mm (31.73 in)

806 mm (31.73 in)

873 mm (34.37 in)

895 mm (35.23 in)
Weight (no drives)

11 Kg (24 lb)

15 Kg (34 lb)

25.1 Kg (55.34 lb)

41 Kg (90.38 lb)
Power 100 – 240 VAC/80 W 100 – 240 VAC/160 W 100 – 240 VAC/300 W 100 – 240 VAC/300 W
Robotic MSBF  1,000,000 1,000,000 2,000,000 3,000,000
Warranty 3 Years 3 Years 3 Years 3 Years
Symply
Powered by  GDPR Cookie Compliance
Privacy Overview

This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
